Droneer X501 Analog / O4 PRO 5 Inch 6S H743 FC Freestyle RC FPV Racing Drone GPS PNP BNF with 2207 1850KV Motors

Description

Features:

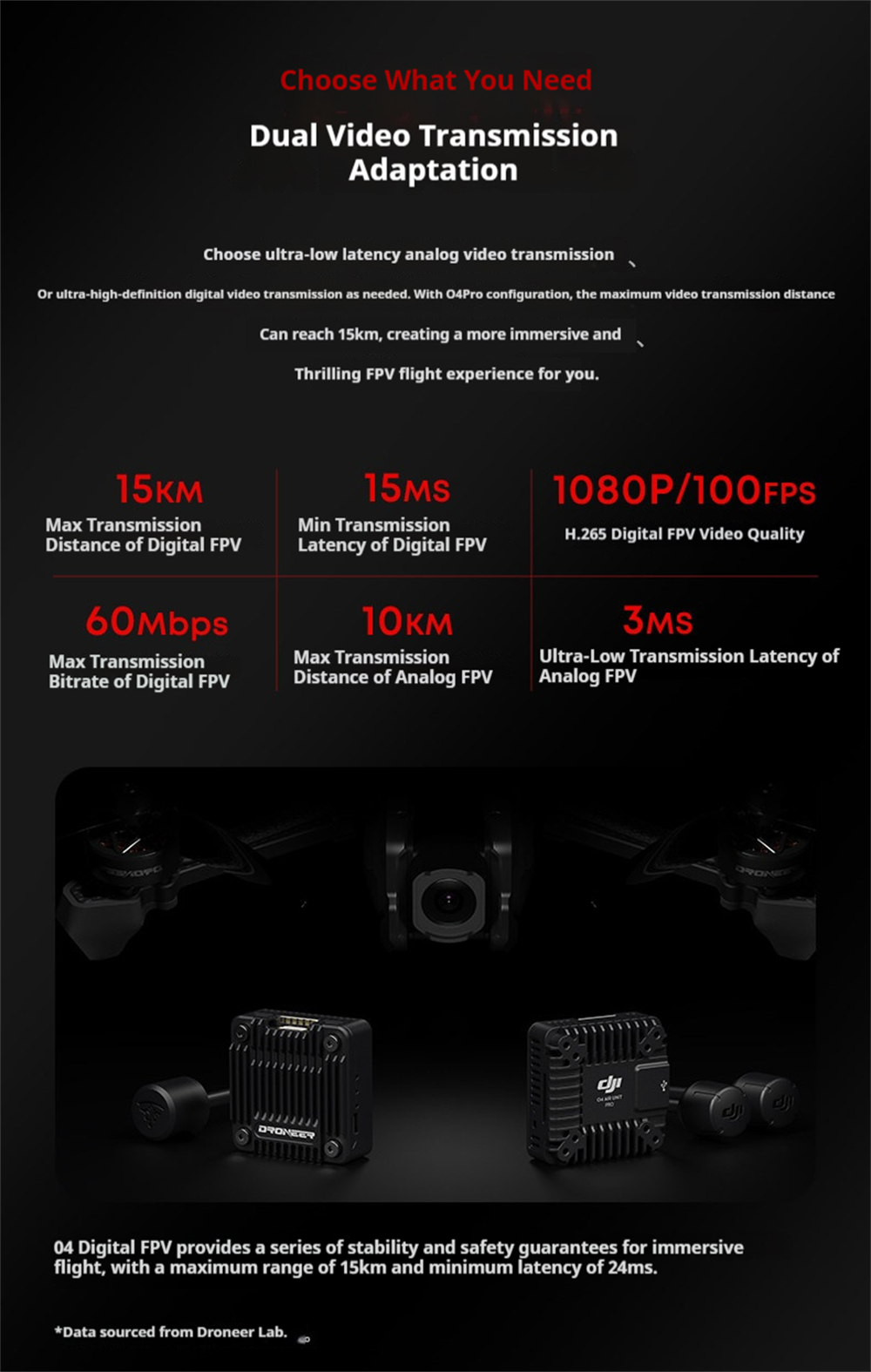

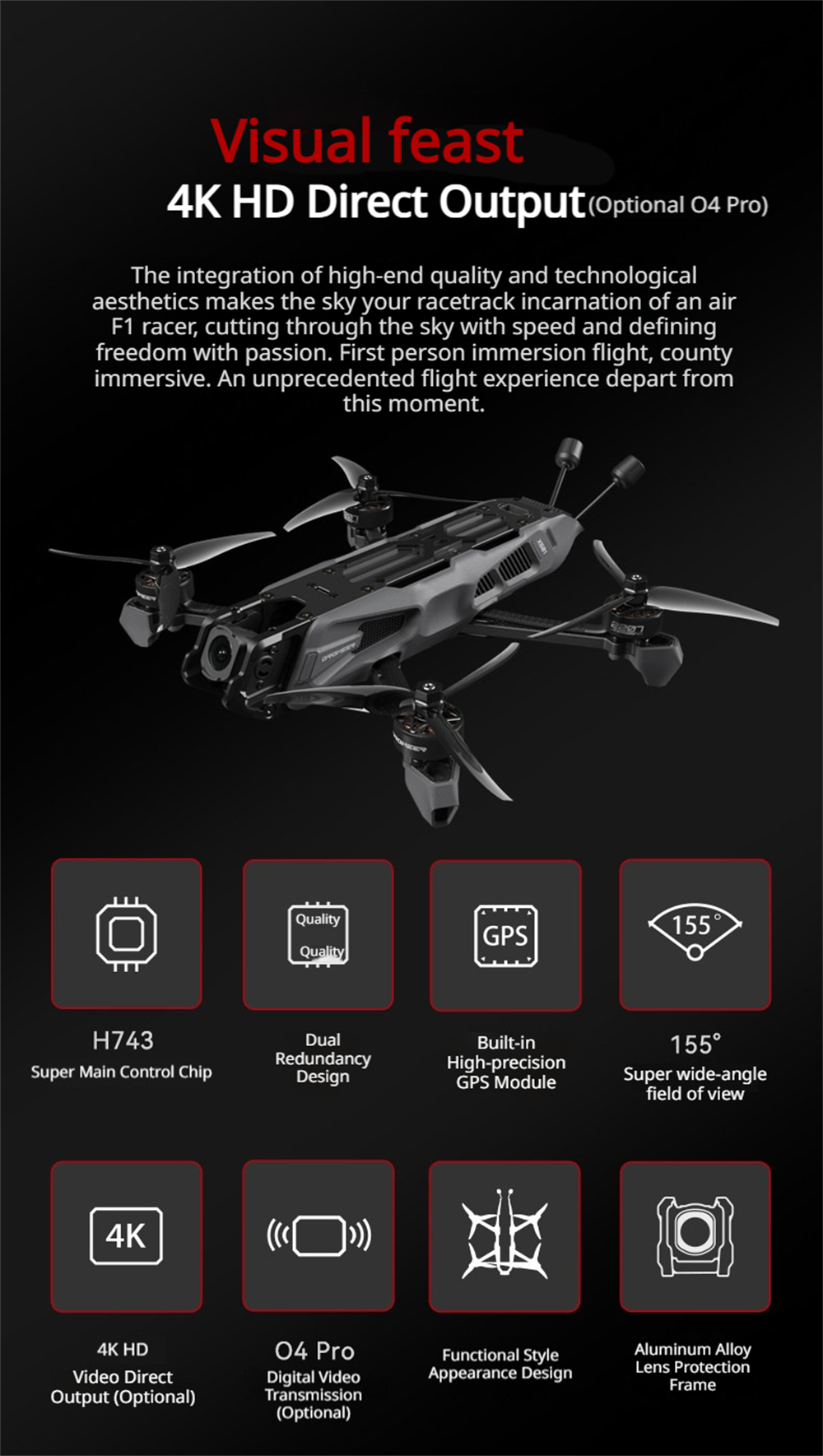

– 155° Ultra‑Wide 4K: Optional O4 Pro captures 4K; digital FPV up to 15 km at 1080p/100fps, ~15 ms latency; analog ~3 ms. SD up to 512GB; mounts for GoPro/Insta360.

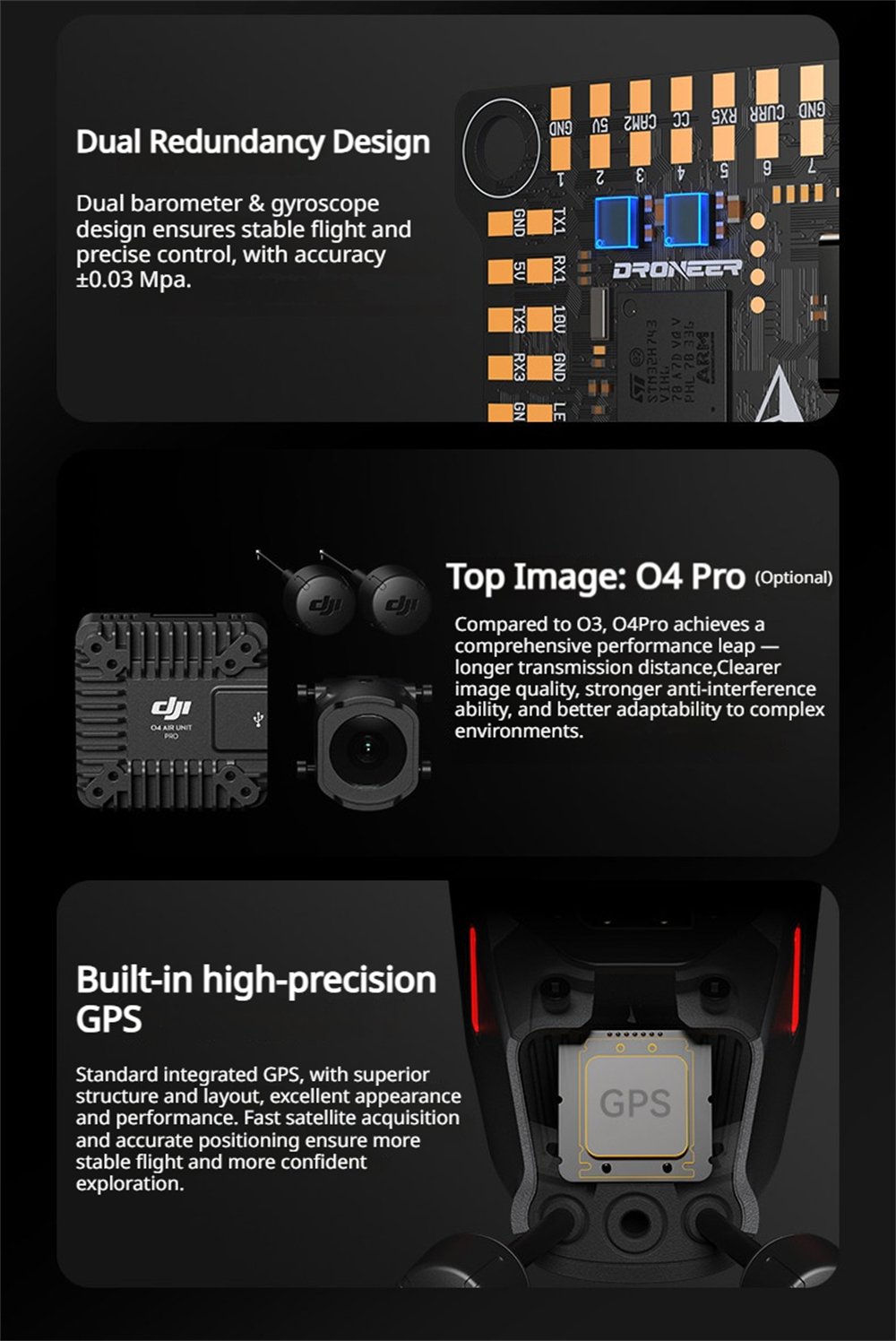

– H743 Dual‑Redundancy Control: Dual barometer and gyros enable precise handling. Multi‑GNSS supports RTH and line holding from −30°C to 55°C and up to 6000 m.

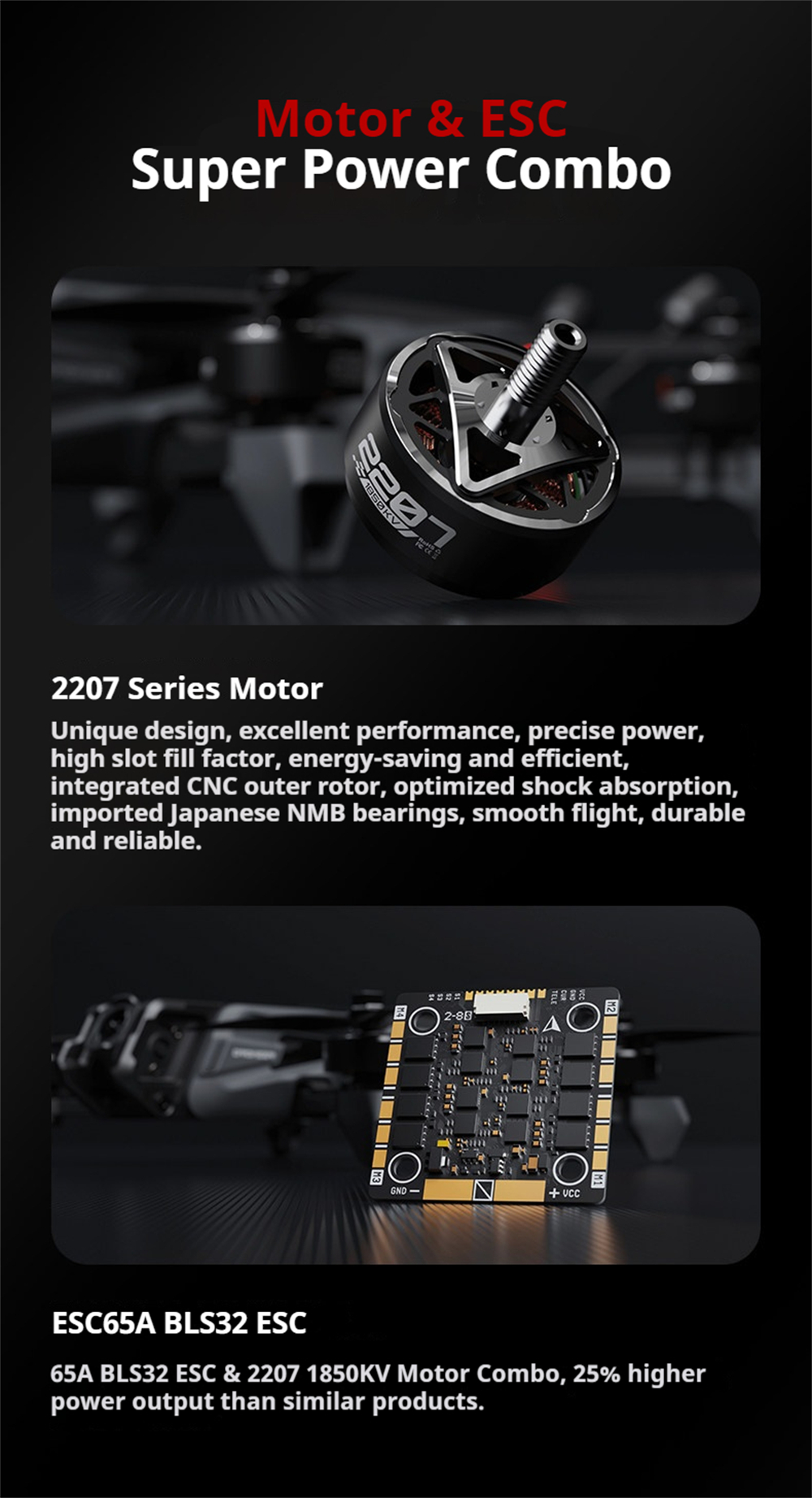

– Powertrain for Tricks: 2207 1850KV motors and 65A BL32 4‑in‑1 ESC deliver strong thrust for rolls and spins. Runs 6S 4500mAh packs for up to 180 km/h and 18 minutes.

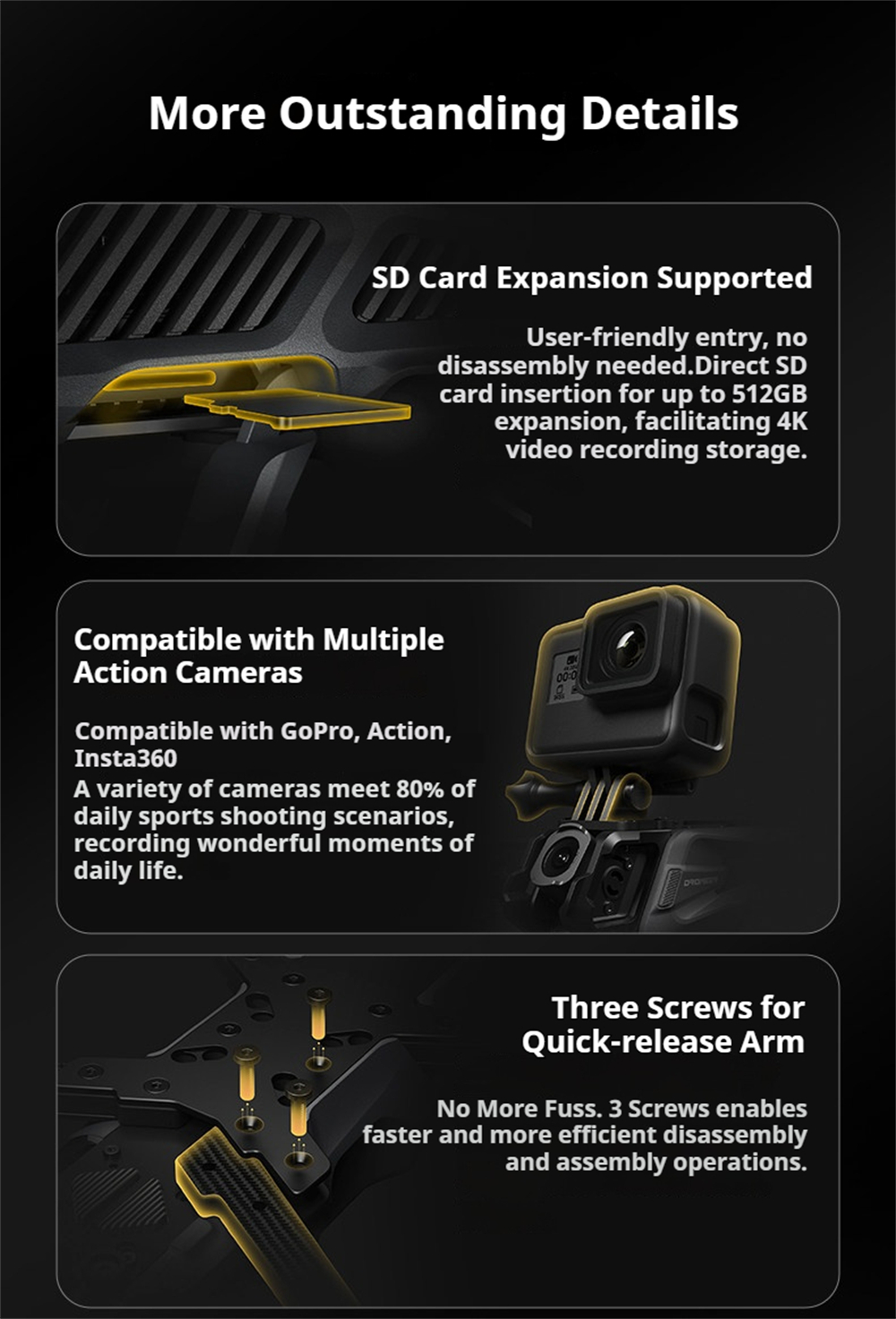

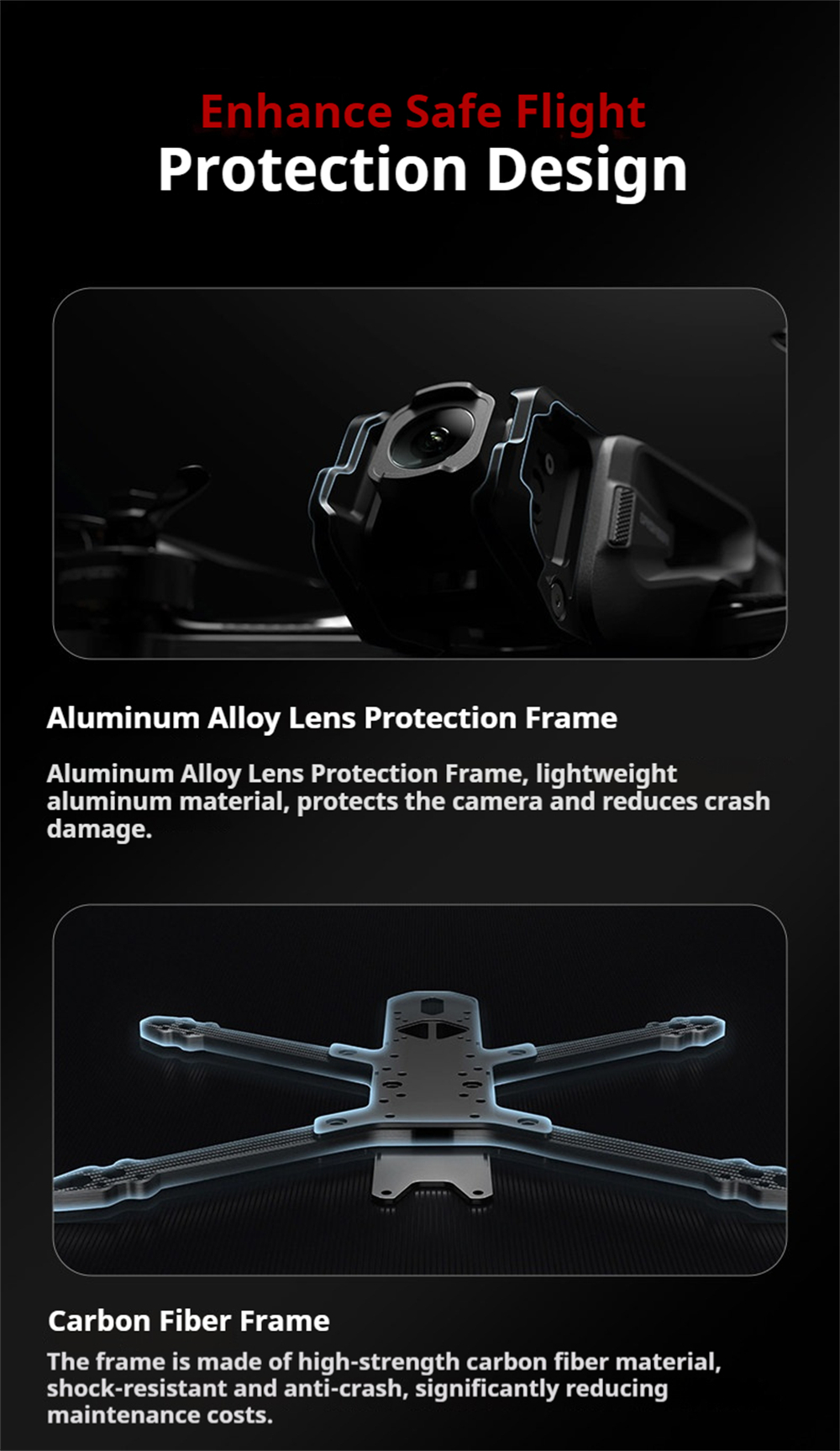

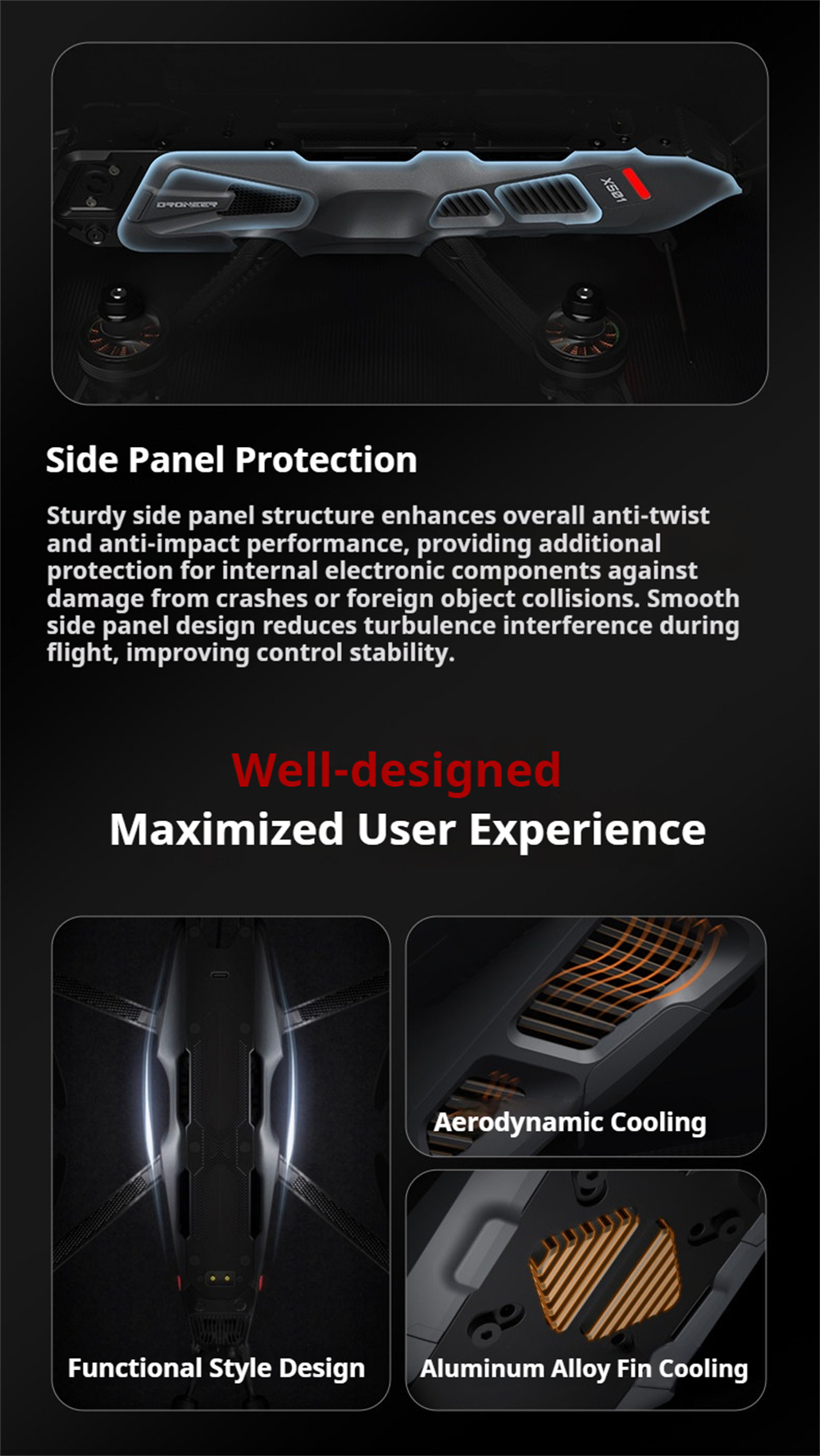

– Reinforced Flight Protection: Carbon‑fiber frame with 7 mm arms, aluminum lens guard, and strengthened side panels. Aerodynamic pathways and aluminum fin cooling stabilize electronics; quick‑release arms speed field repairs.

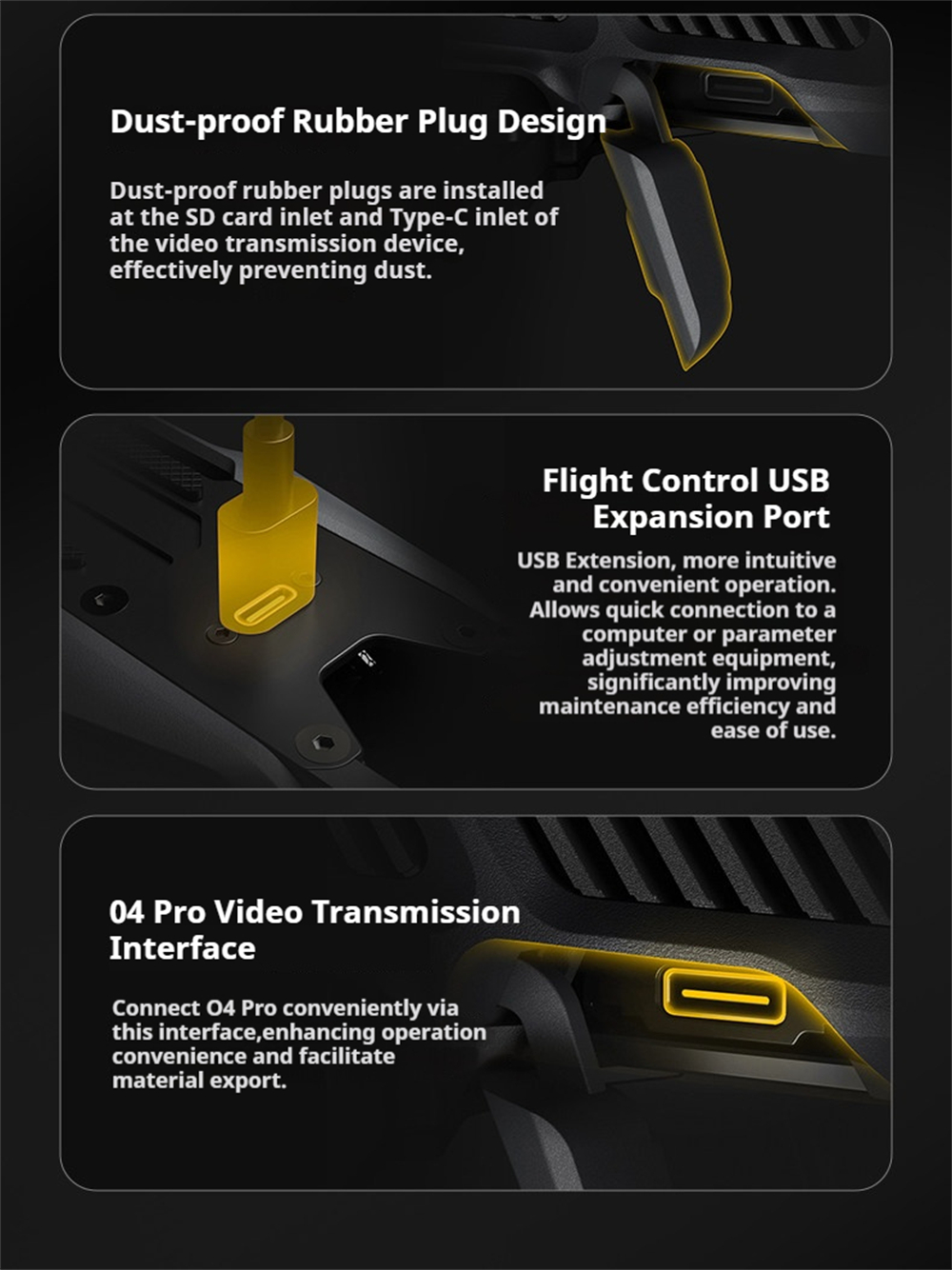

– Creator‑Ready Details: XT60 power, PAL/NTSC/HD OSD, USB tuning extension, and dust‑proof plugs. Sleek functional styling delivers an immersive FPV experience for both beginners and advanced pilots.

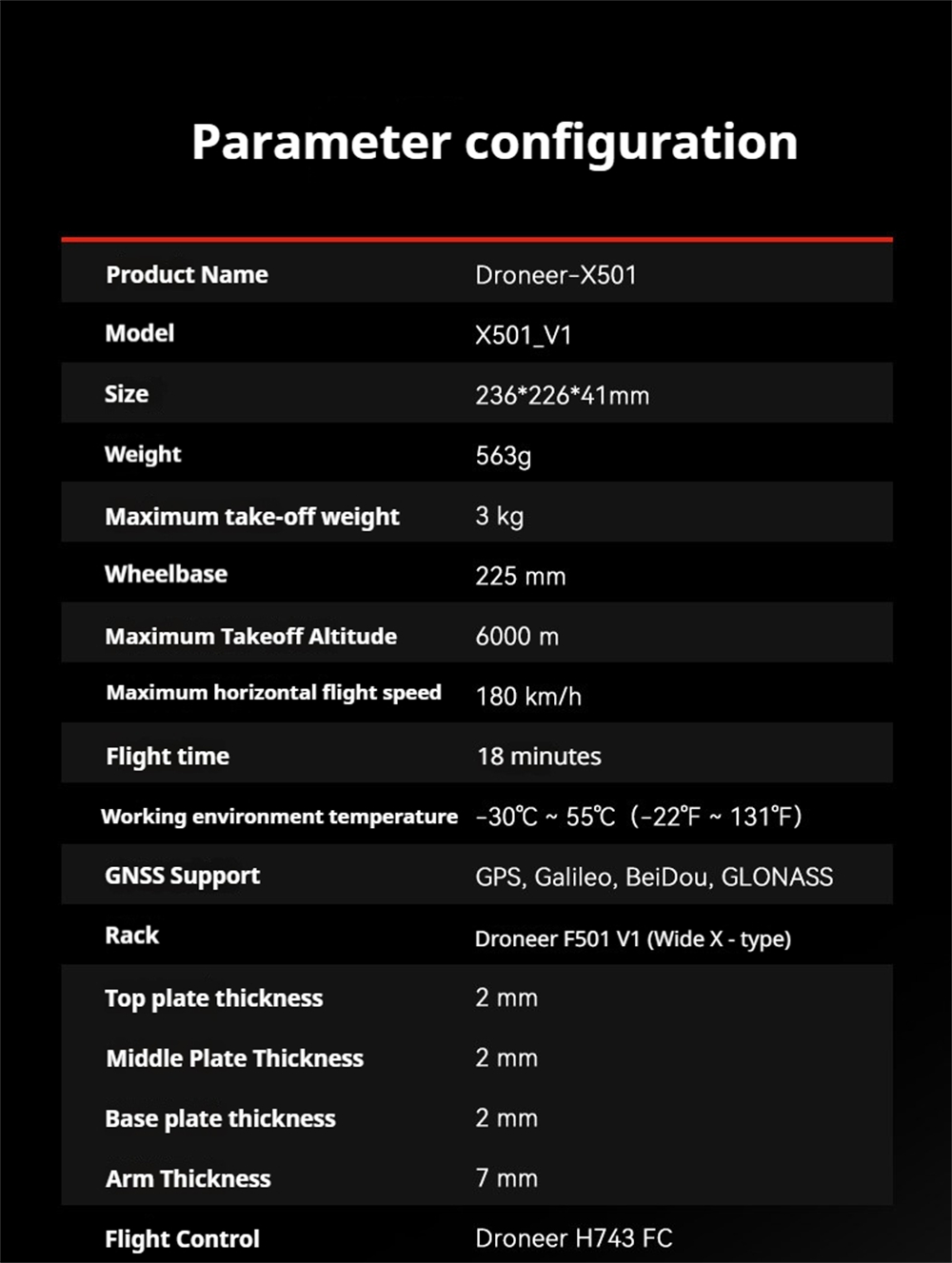

Specification:
Brand: Droneer

Model: X501
Item Name: 5 Inch 6S Freestyle FPV Racing Drone
Wheelbase: 225 mm
Maximum Takeoff Altitude: 6000 m
Maximum Horizontal Flight Speed: 180 km/h
Maximum Flight Time: 18 min
Working Environment Temperature: -30°C to 55°C (-22°F to 131°F)
GNSS Support: GPS, Galileo, BeiDou, GLONASS
Frame (Rack): Droneer F501 V1 (Wide X Type)
Top Plate Thickness: 2 mm
Middle Plate Thickness: 2 mm
Base plate thickness: 2 mm
Arm Thickness: 7 mm

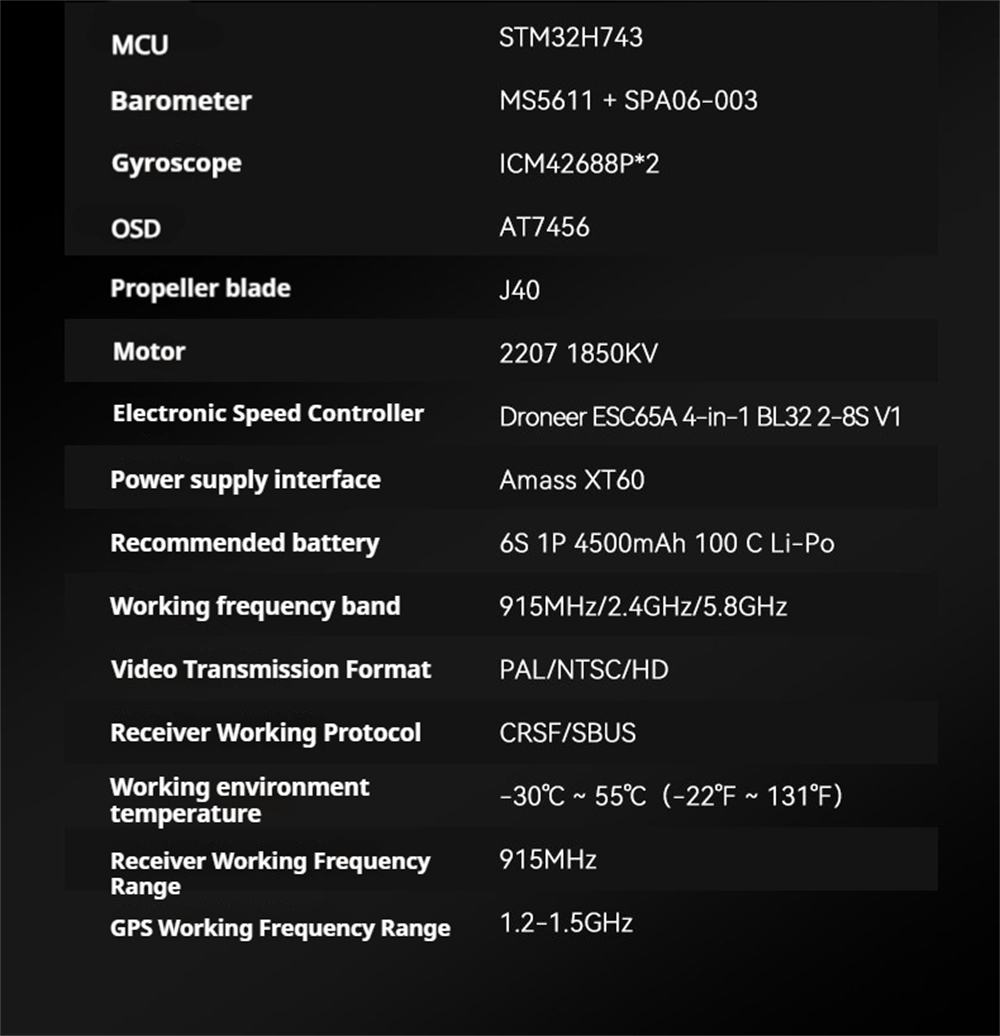

Flight Controller: Droneer H743 FC
MCU: STM32H743
Barometer: MS5611 + SPA06-003
Gyroscope: ICM42688P *2
OSD: AT7456
Propeller: J40
Motor: 2207 1850KV
ESC: Droneer ESC65A 4‑in‑1 BL32 2–8S V1
Power Connector: Amass XT60
Recommended Battery(Not included): 6S 1P 4500 mAh 100C Li‑Po
Working Frequency Bands: 915 MHz / 2.4 GHz / 5.8 GHz
Video Transmission Format: PAL / NTSC / HD
Receiver Protocols: CRSF / SBUS
Receiver Working Frequency: 915 MHz
GPS Working Frequency Range: 1.2–1.5 GHz

Size: 236 x 226 x 41 mm
Weight: 563 g
Maximum Take-off Weight: 3 kg

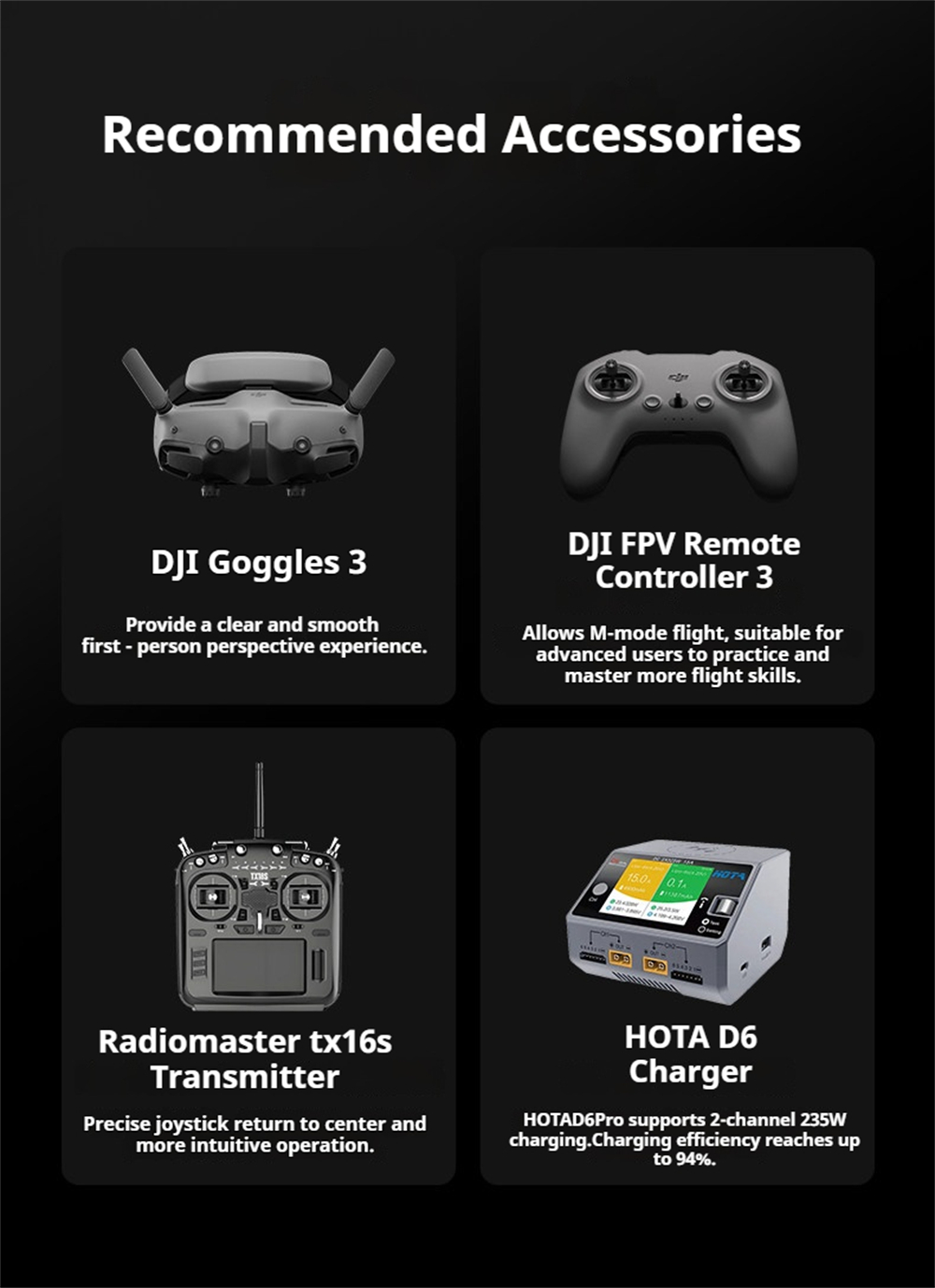

Recommend Parts(Not Included):
– DJI Goggles 3
– DJI FPV Remote Controller 3
– Radiomaster TX16S Transmitter
– HOTA D6 Charger

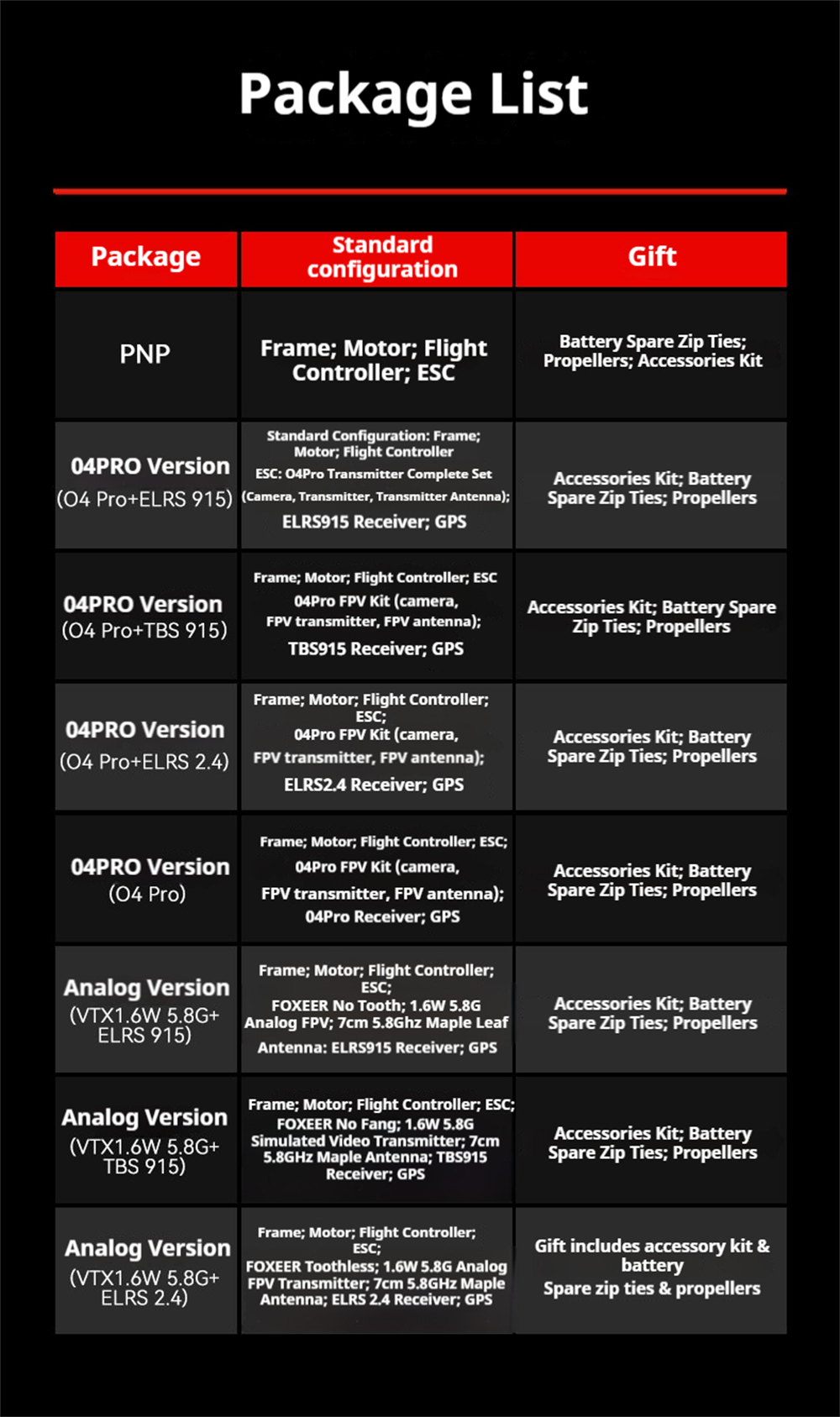

Package Included:
1 x Droneer X501 5 Inch 6S Freestyle FPV Racing Drone
1 x Accessories Pack
1 x Battery Strap
1 x Propeller
