Killerbody MARS KR10 48838 48838S KIT/ARR Version 1/10 4WD RC Car Rally Chassis Frame Assembly with Metal Oil Shock Front CVD Compatible Lancia 037 Body Shell Electric Vehicles Models Toys

Description

Attention:The body shell and all electronic parts are not included in the package

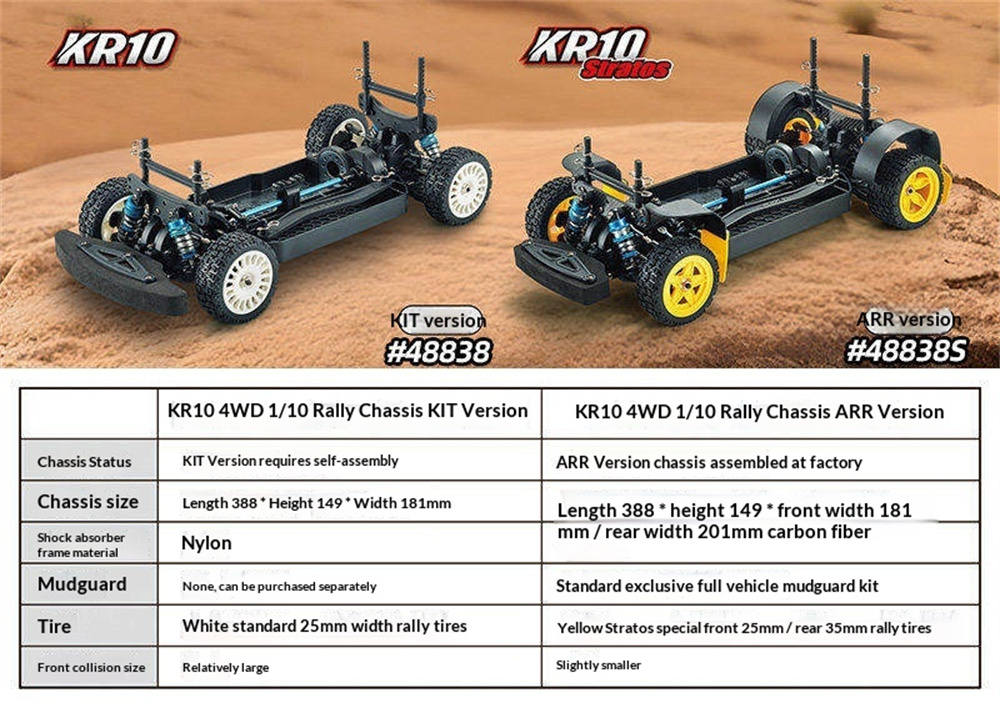

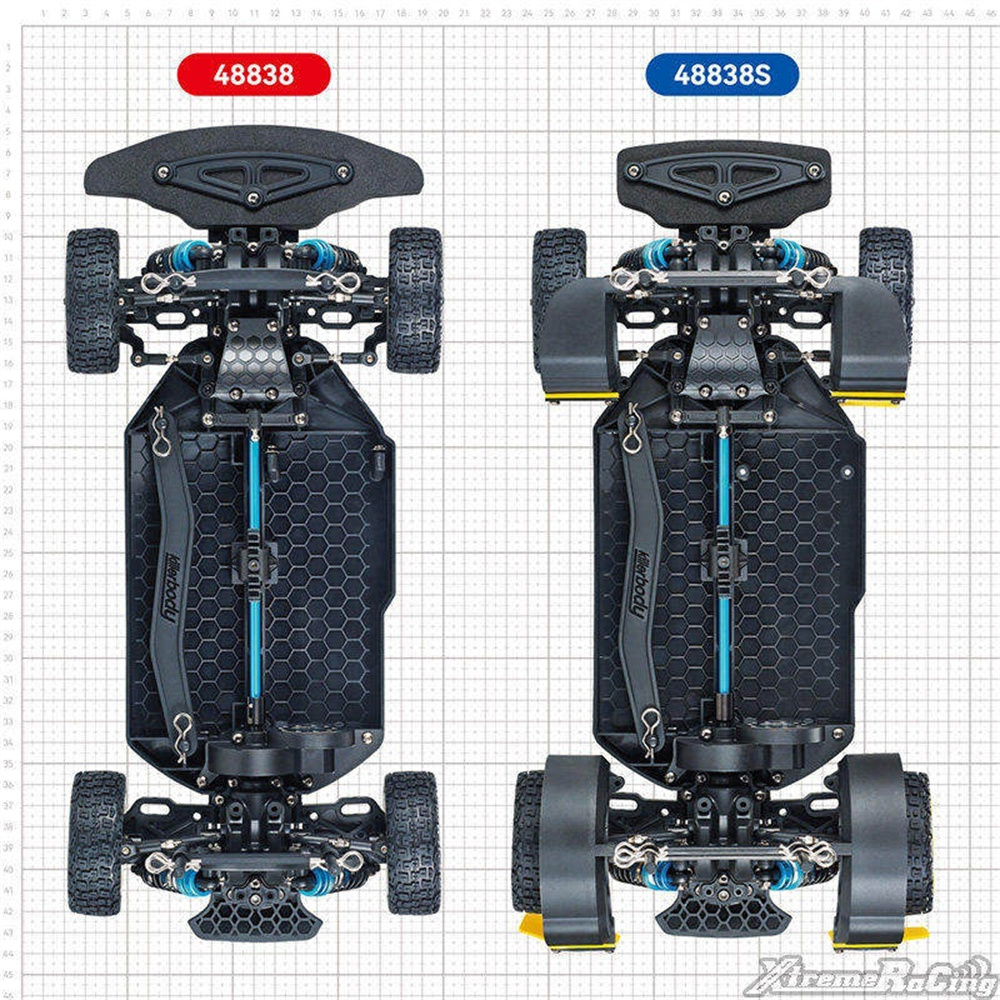

KIT and ARR Version Difference:
1.KIT version needs to be assembled by yourself,ARR version is pre-assembled

2.The shock absorber frame KIT version is made of nylon,ARR version is made of carbon fiber

3.KIT version do not have mudguard part,ARR version has standard configuration includes exclusive full vehicle mudguard kit

4.Tire color and size is different,KIT version is white standard 25mm width rally tires,ARR version is yellow Stratos-specific 25mm front/35mm rear rally tires

5.The front bumper size is different,KIT version front bumer size is larger,ARR version front bumper is slightly smaller

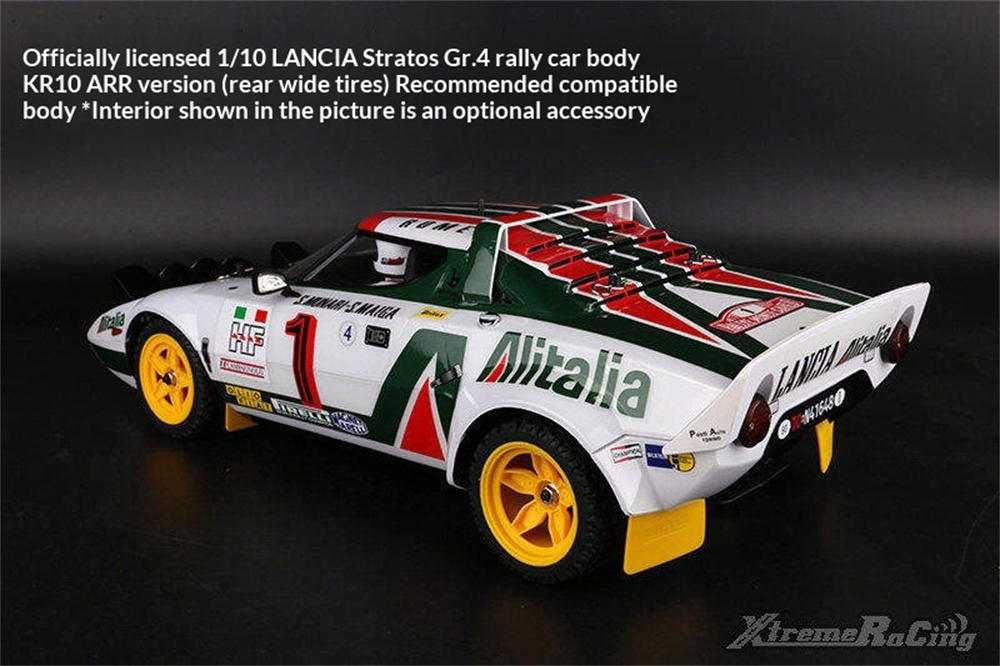

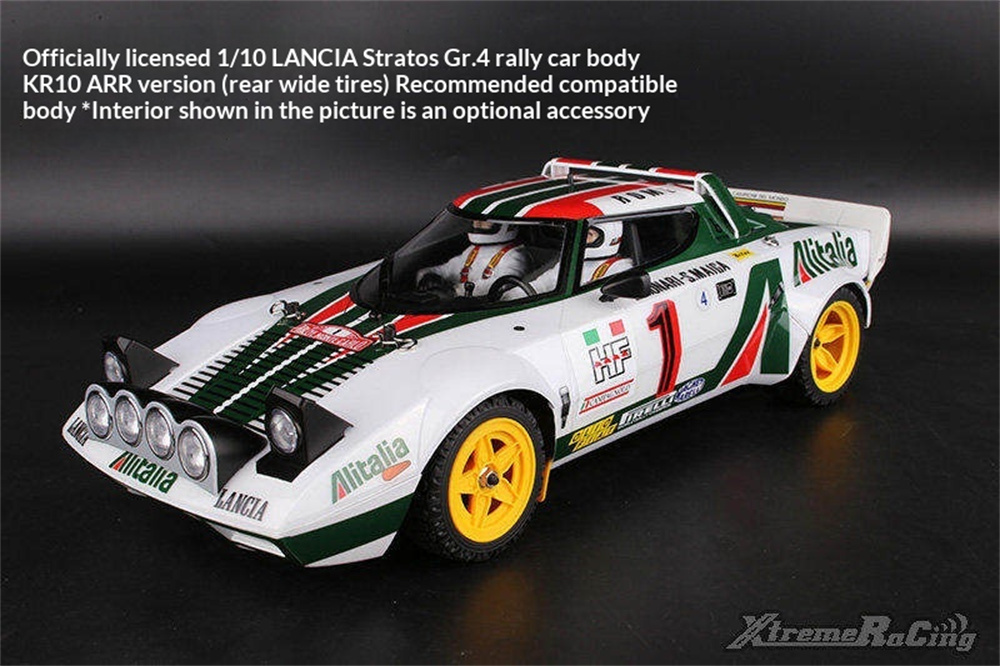

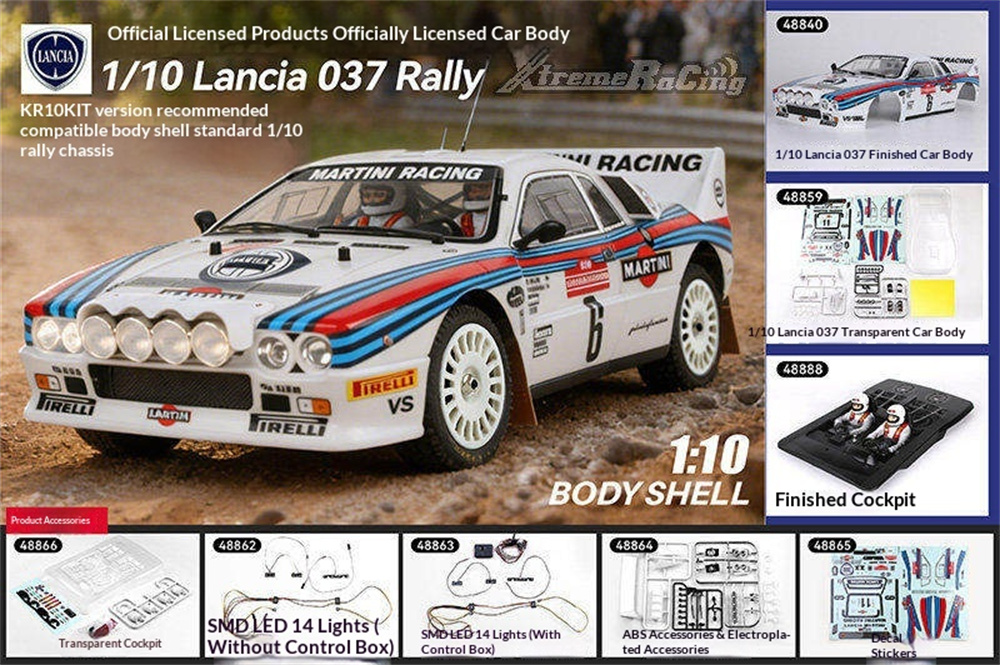

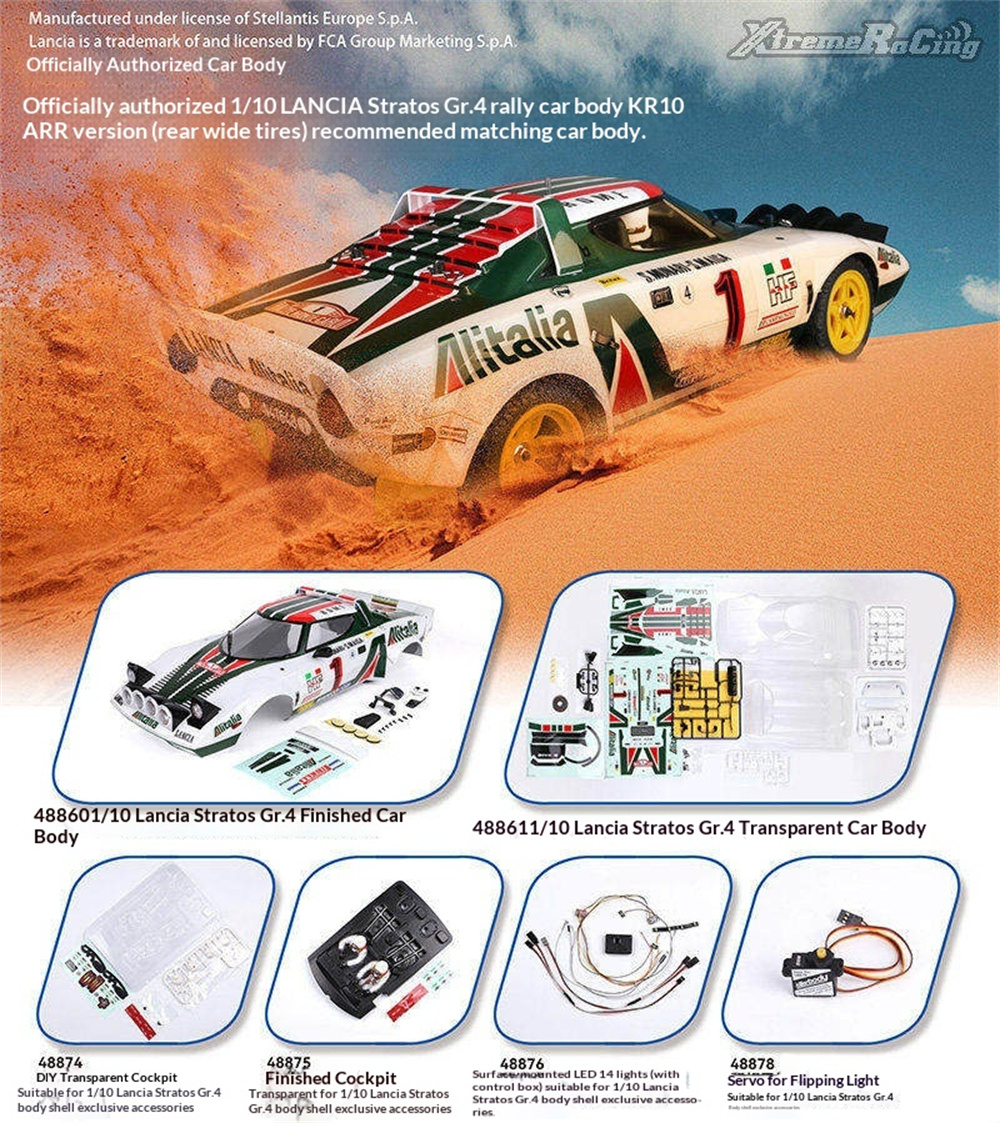

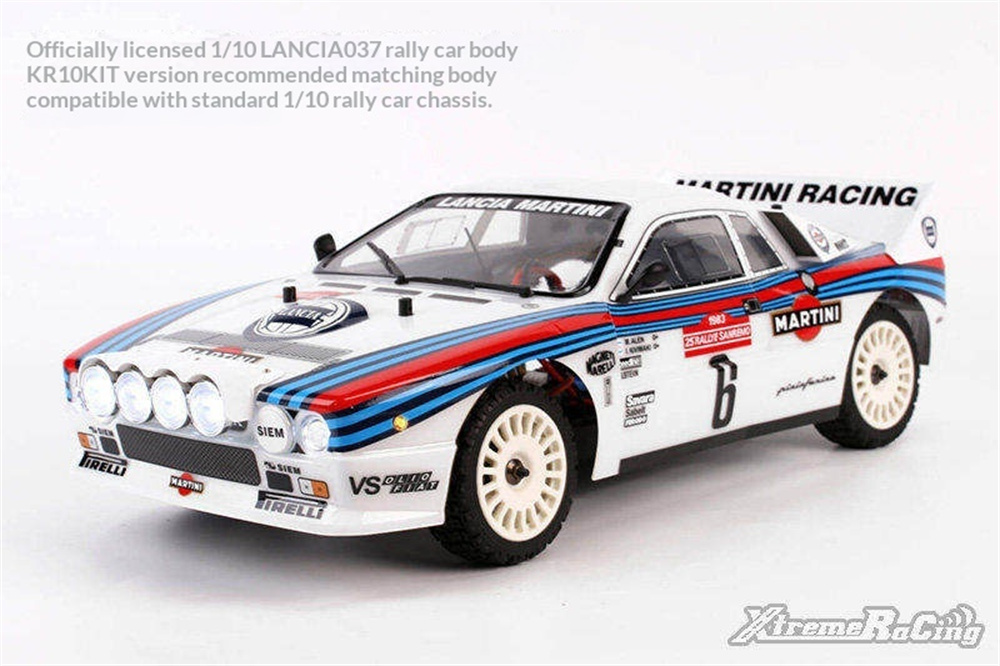

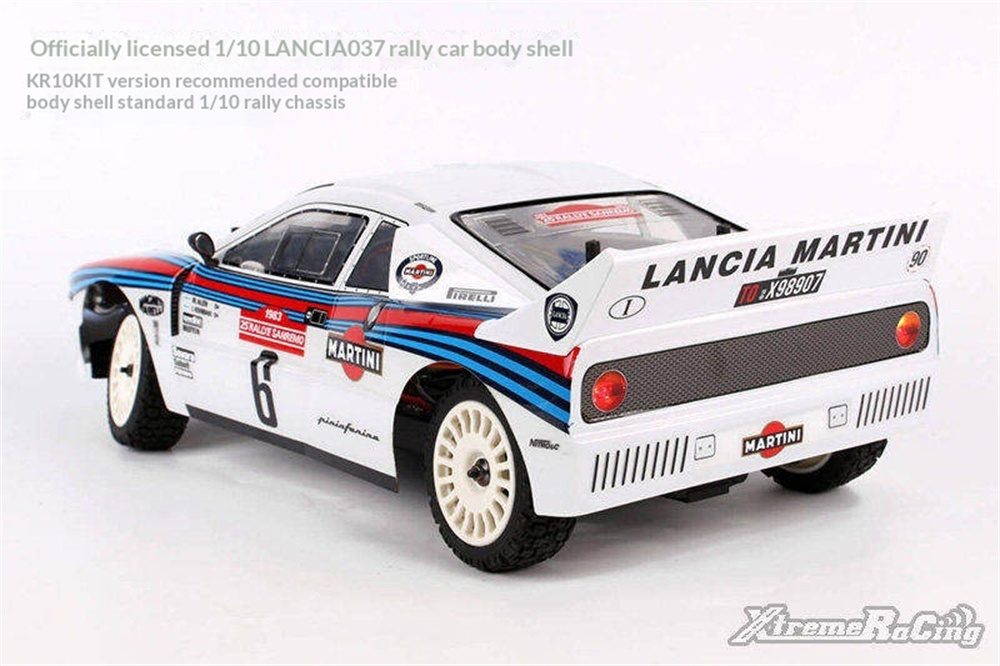

6.The suitable body shell is different,Kit version is fit for Killerbody 1/10 Lancia 037 body shell,ARR version is fit for Killerbody 1/10 Lancia Stratos Gr.4 body shell

Description:

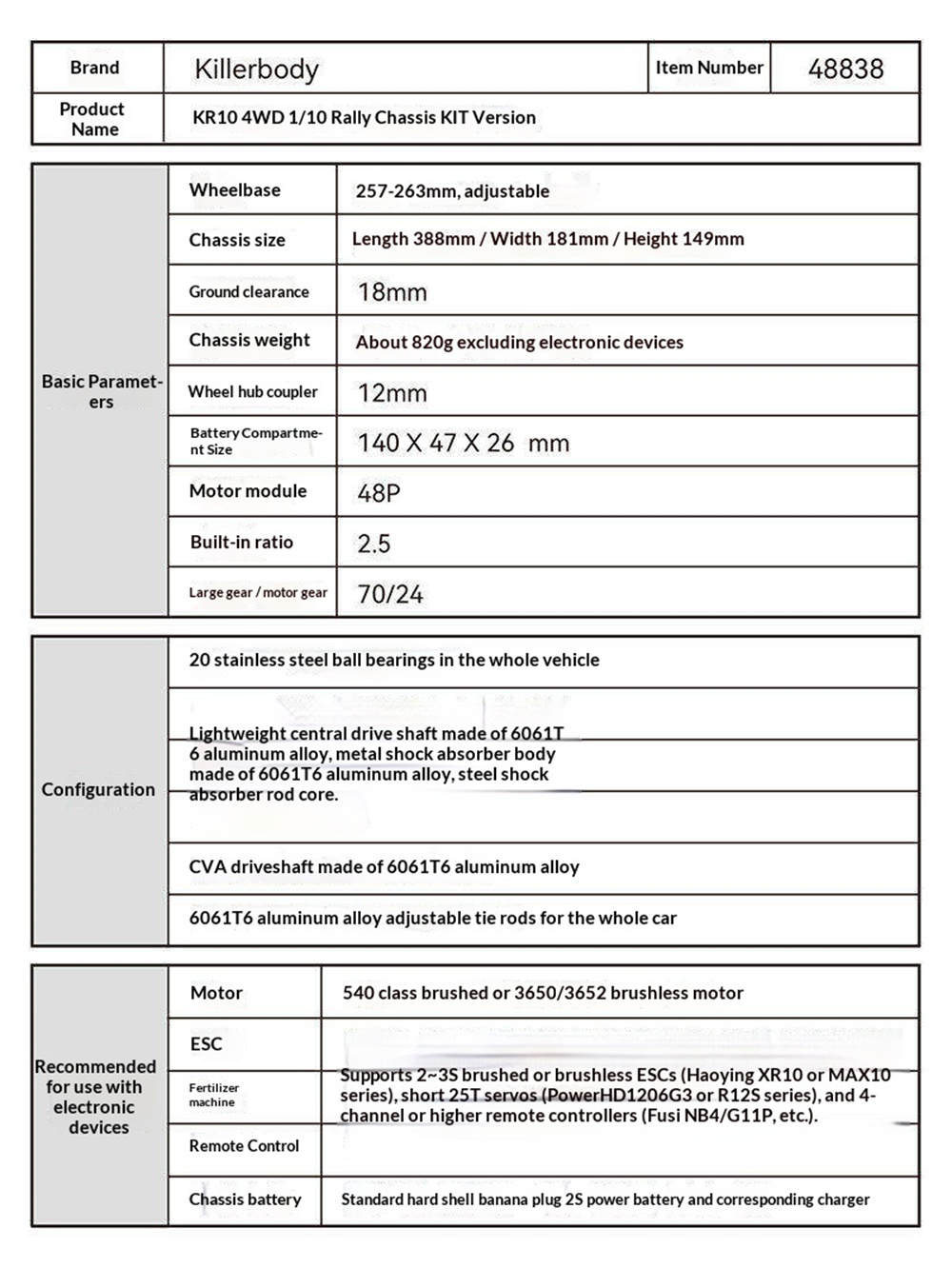

Basic information	Brand:Killerbody Item No:48838 48838S KR10 Type:Kit/ARR version Scale:1/10 Color:As picture shown	Power System	Not Included
Transmitter	Not Included	Battery	Not Included Recommended Battery:2S Lipo battery(not included)

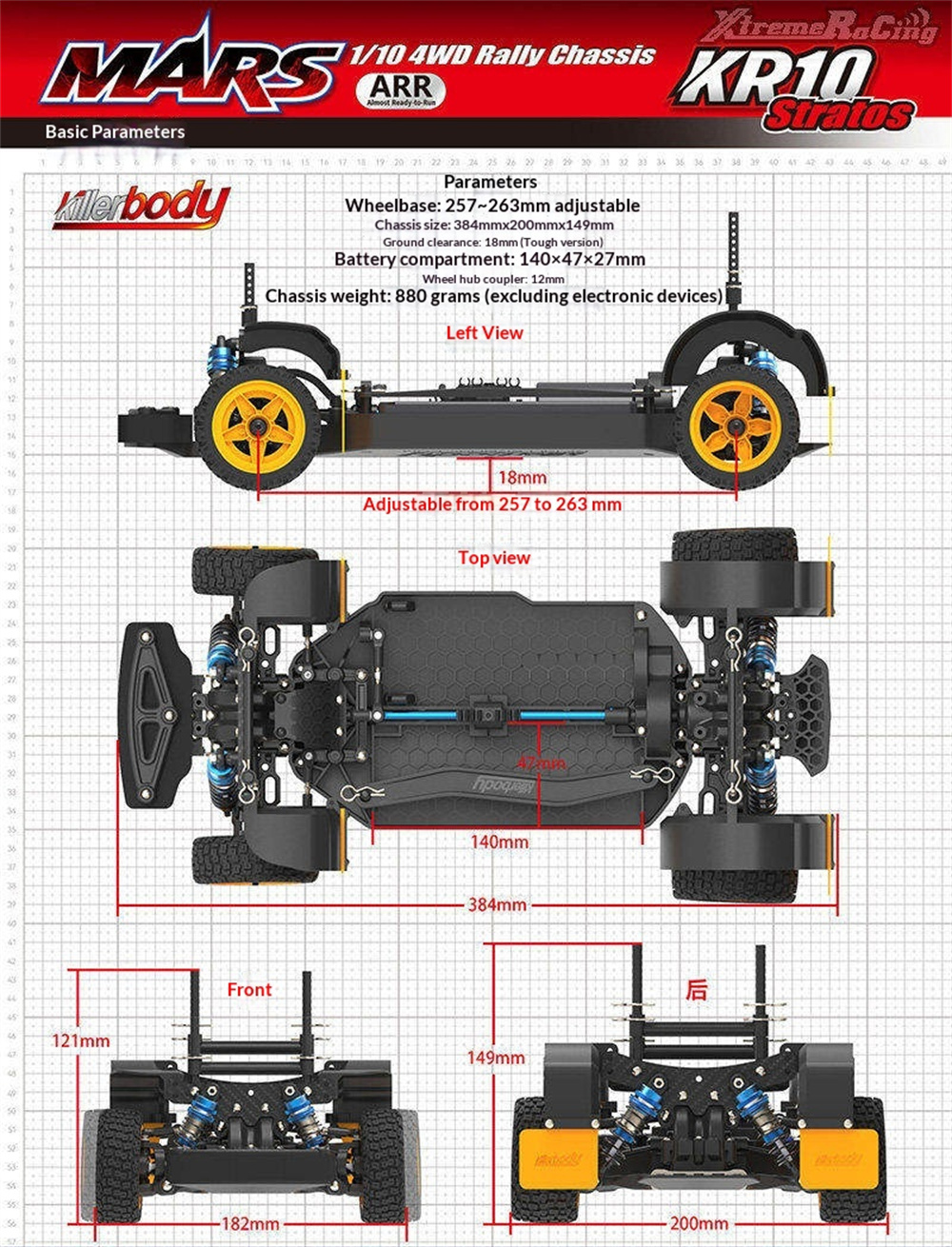

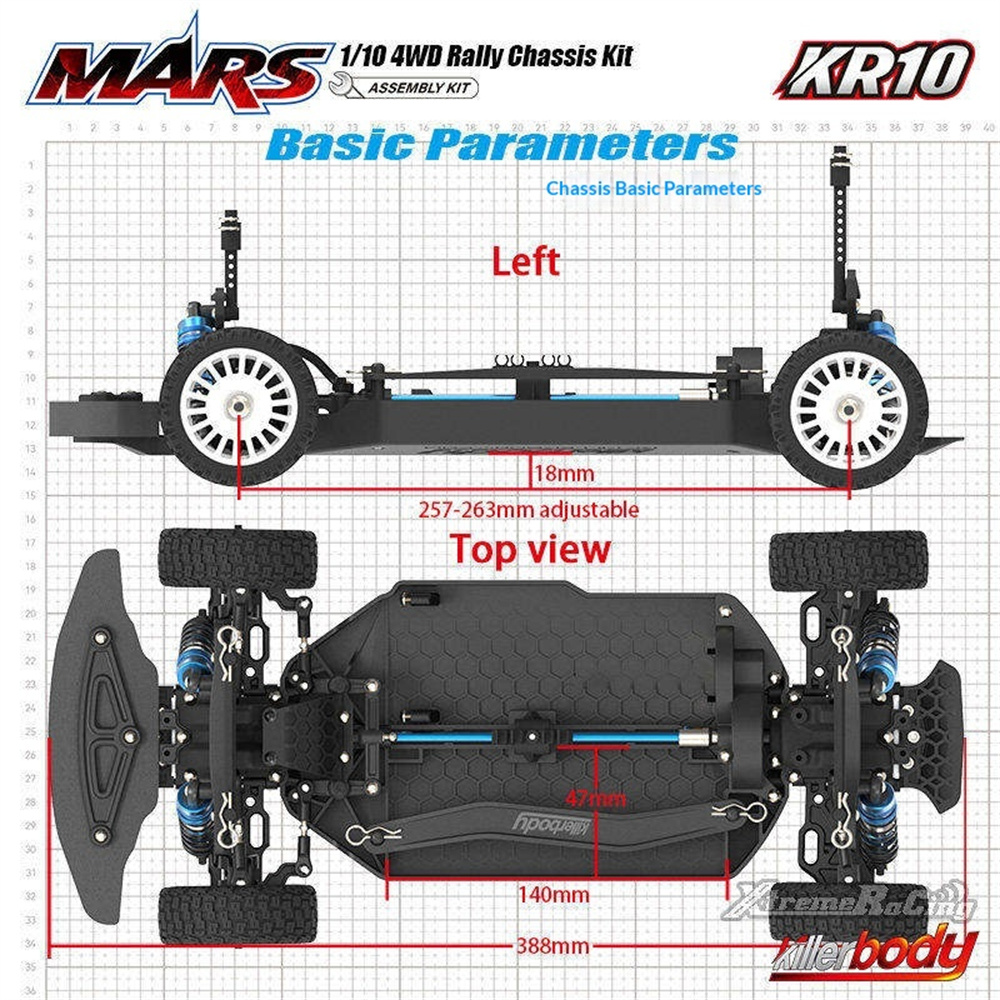

Other	Material:PA+metal+electronic parts Chassis Weight:About 820/880g	Dimension	KIT Version Car Size:388*181*149mm ARR Version Car Size:388*181*149mm(rear width is 201mm) Wheelbase:257-263mm adjustable Ground Clearance:18mm Wheel Rim Adapter:12mm Battery Compartment Size:140*47*26mm

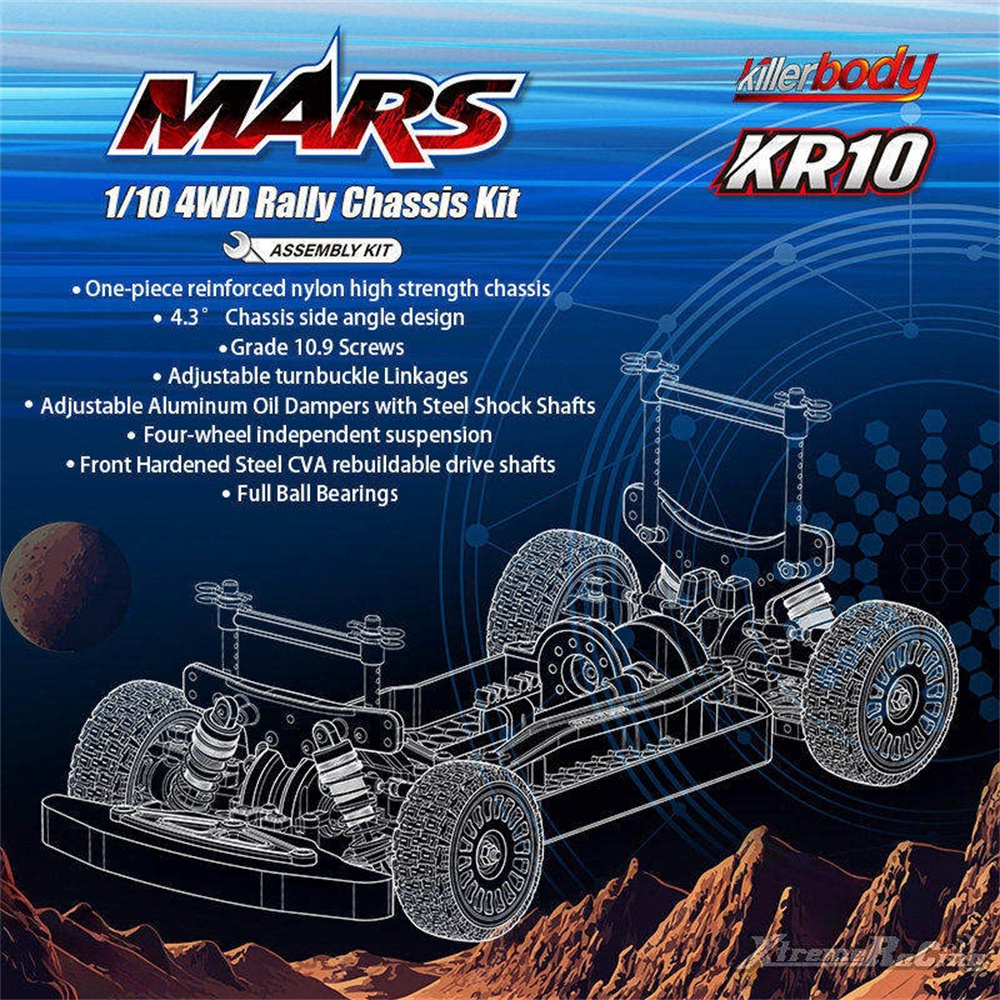

Killerbody has unveiled the all-new MARS Series KR10 1/10 4WD Rally Chassis, launched alongside officially licensed Lancia classic rally bodies that perfectly capture the essence of racing.
This time, Killerbody is doing more than just building a chassis; they are breaking industry standards by introducing the world’s first official rally frame featuring a ‘widened rear track’ design. This breakthrough aims to provide a 100% faithful recreation of the iconic spirit and track dynamics of legend 1970s and 80s rally cars.
The KR10 chassis is available in two distinct configurations to cater to the diverse modification and assembly preferences of enthusiasts. Both versions are supplied without electronics or body shells:

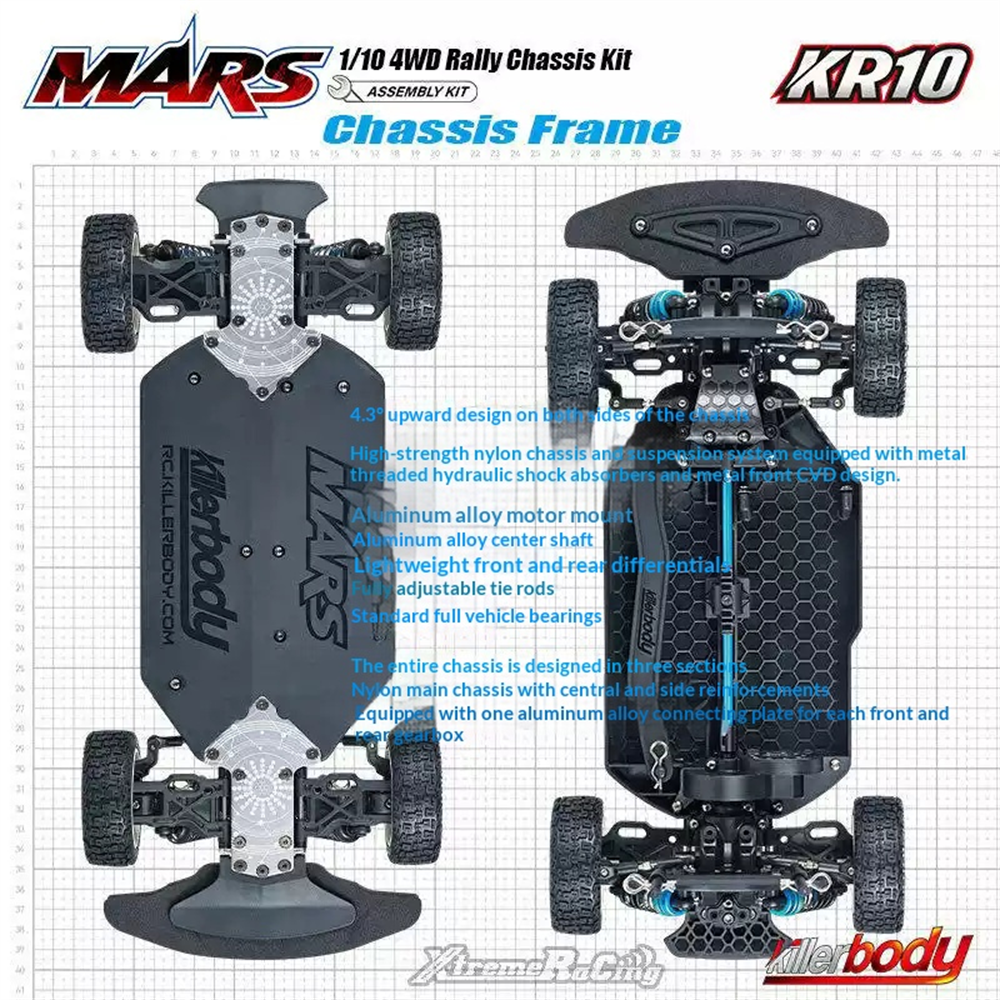

KIT Version (#48838): Featuring a classic design with identical front and rear wheel sizes, this model allows players to experience the journey from scratch and enjoy the endless fun of hand-assembly!

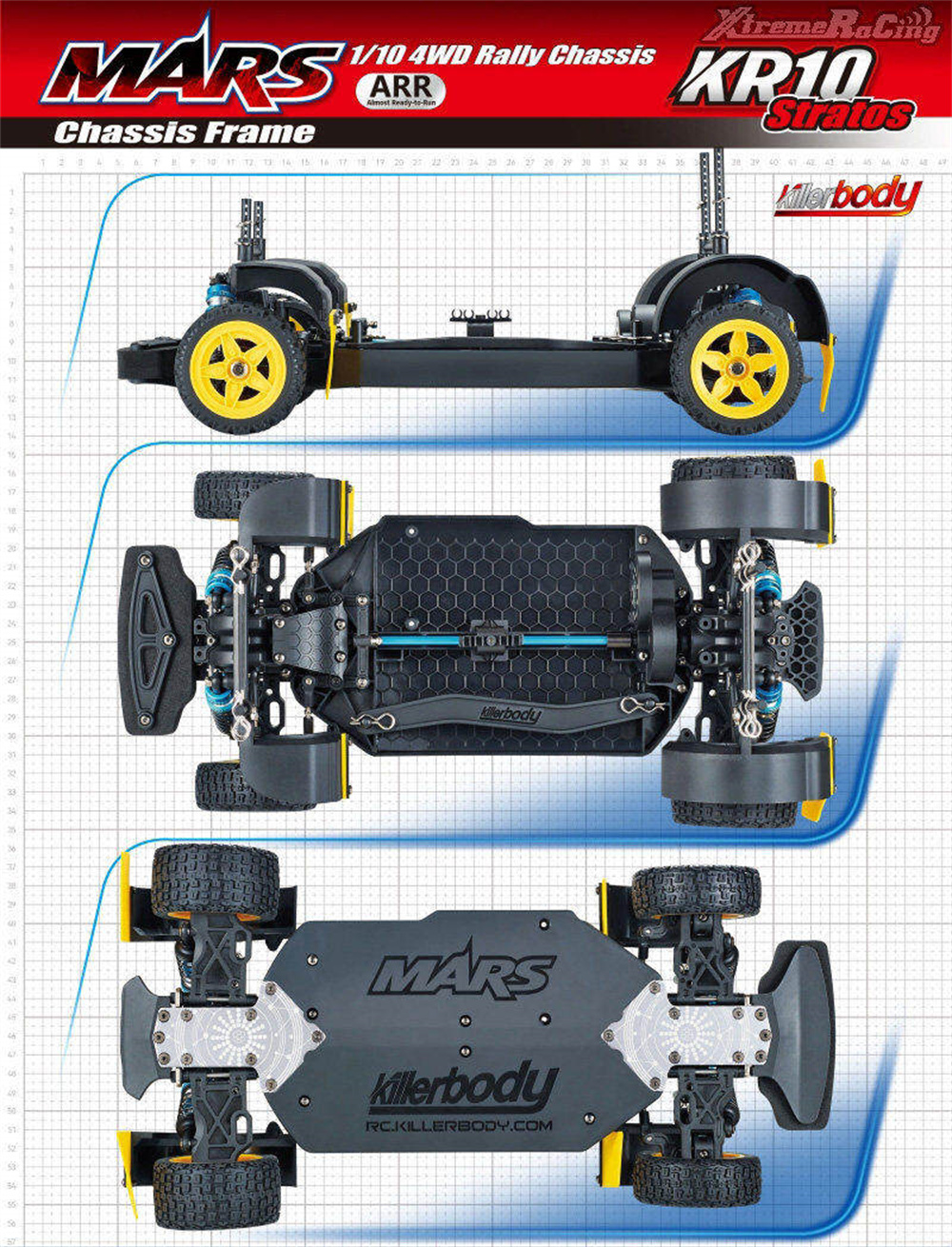

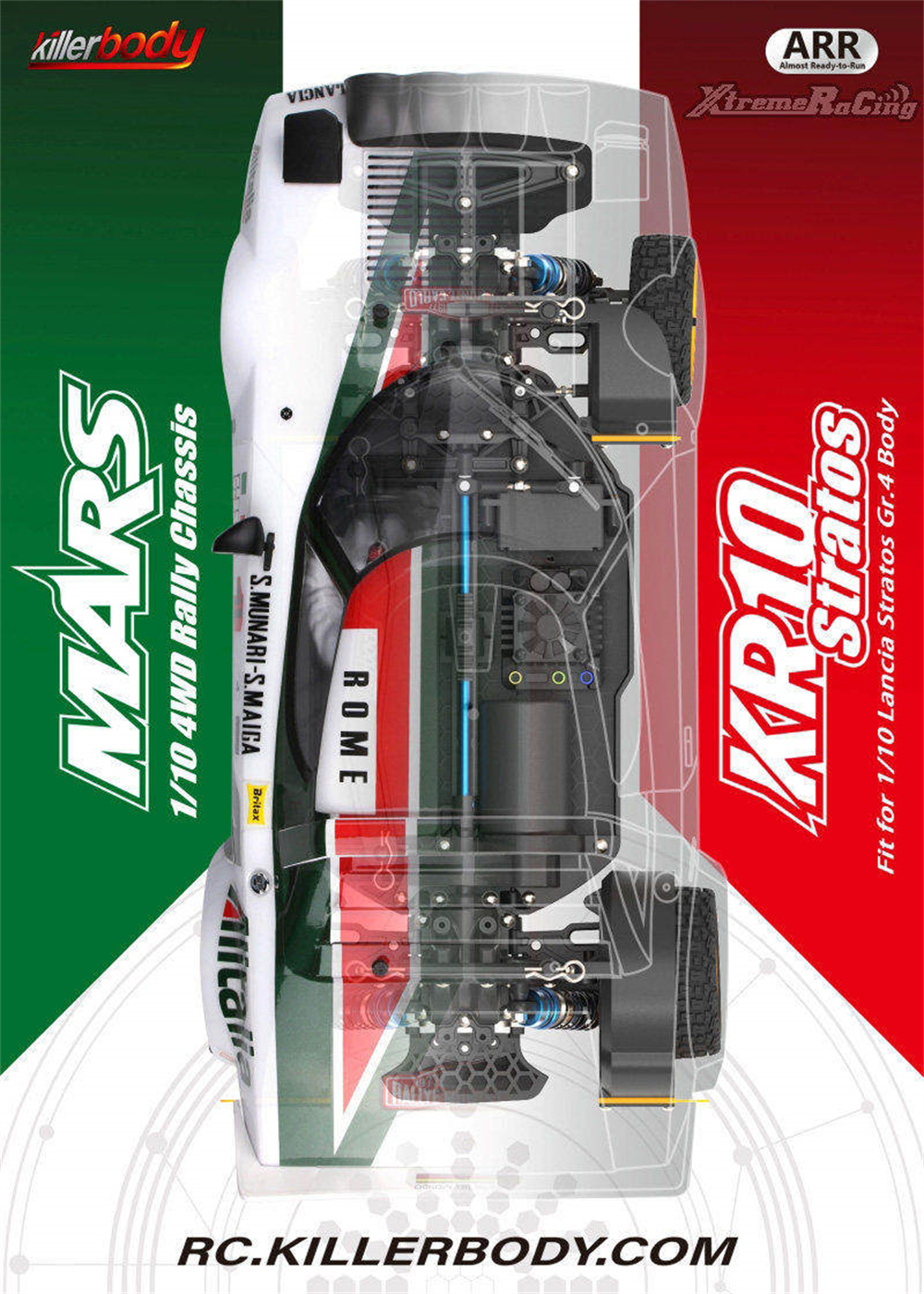

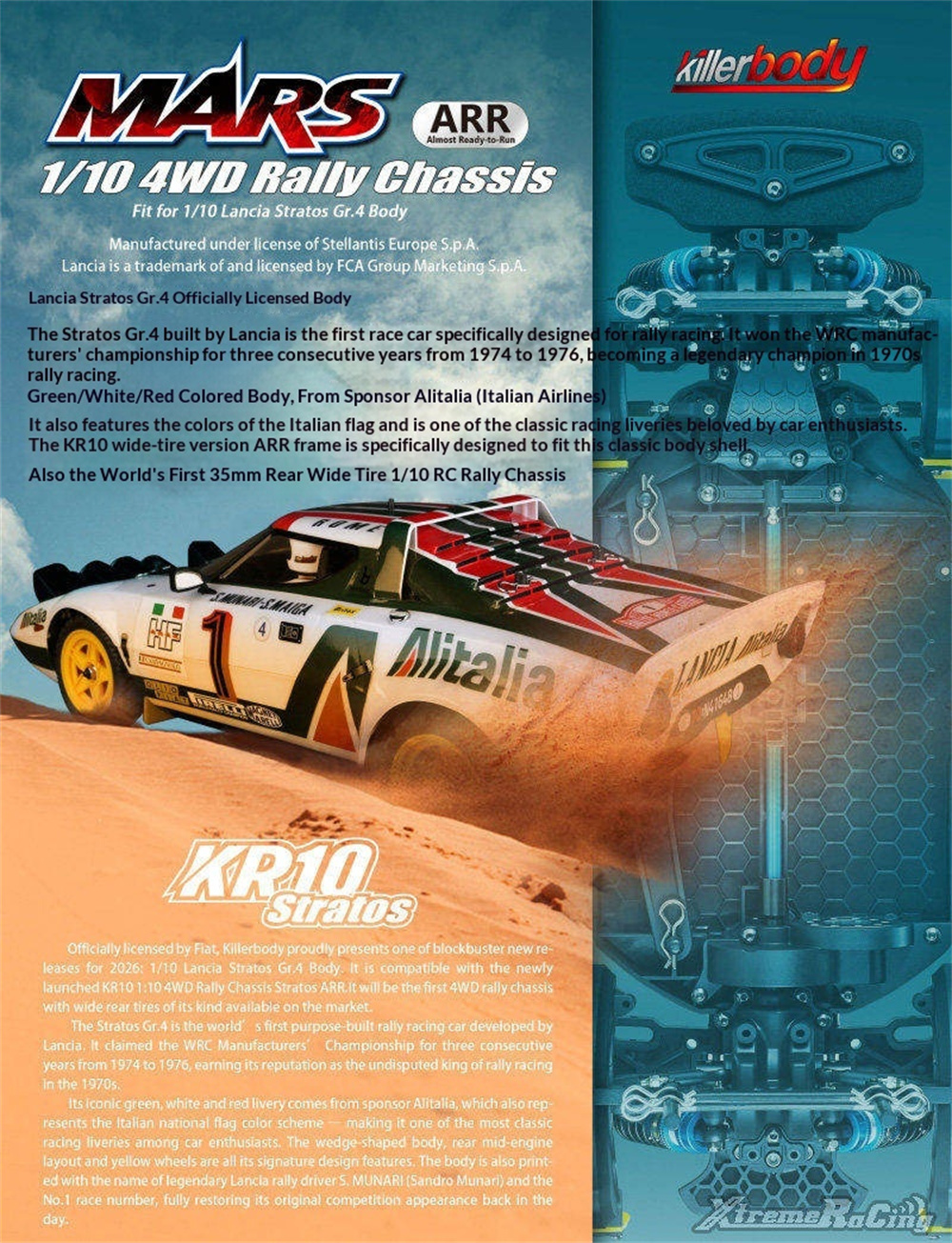

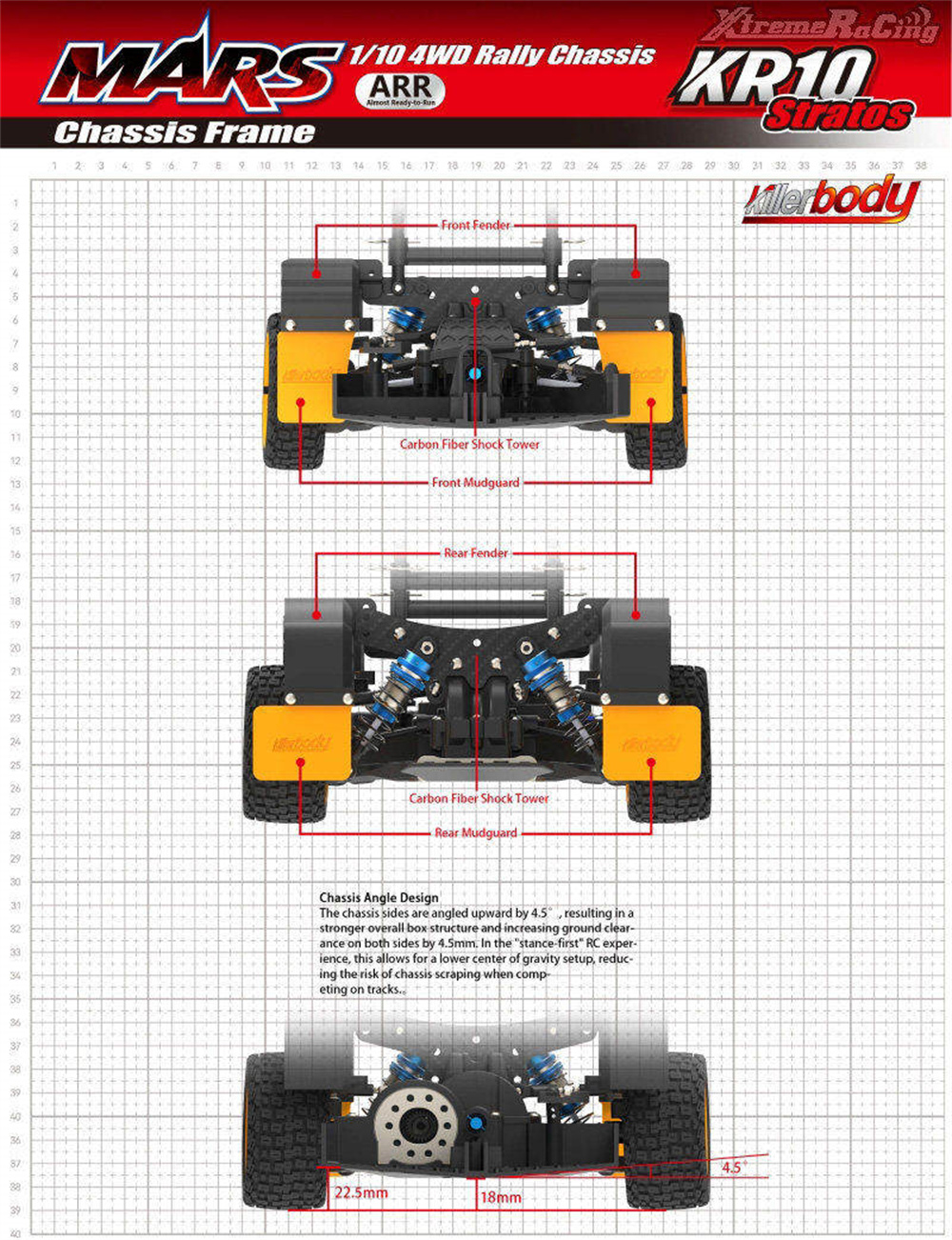

ARR Version (#48838S): Adopting the world’s first official 1/10 rally chassis, now featuring a striking 35mm wide rear tire configuration. This factory-assembled chassis comes pre-loaded with multiple premium Option upgrades over the standard KIT version.Equipped with a standard 35mm widened rally tire, the rear wheel reaches a staggering 201mm in total width. This perfectly replicates the ‘narrow front, wide rear’ geometry of the real vehicle, delivering extreme grip and an aggressive, dominant stance.

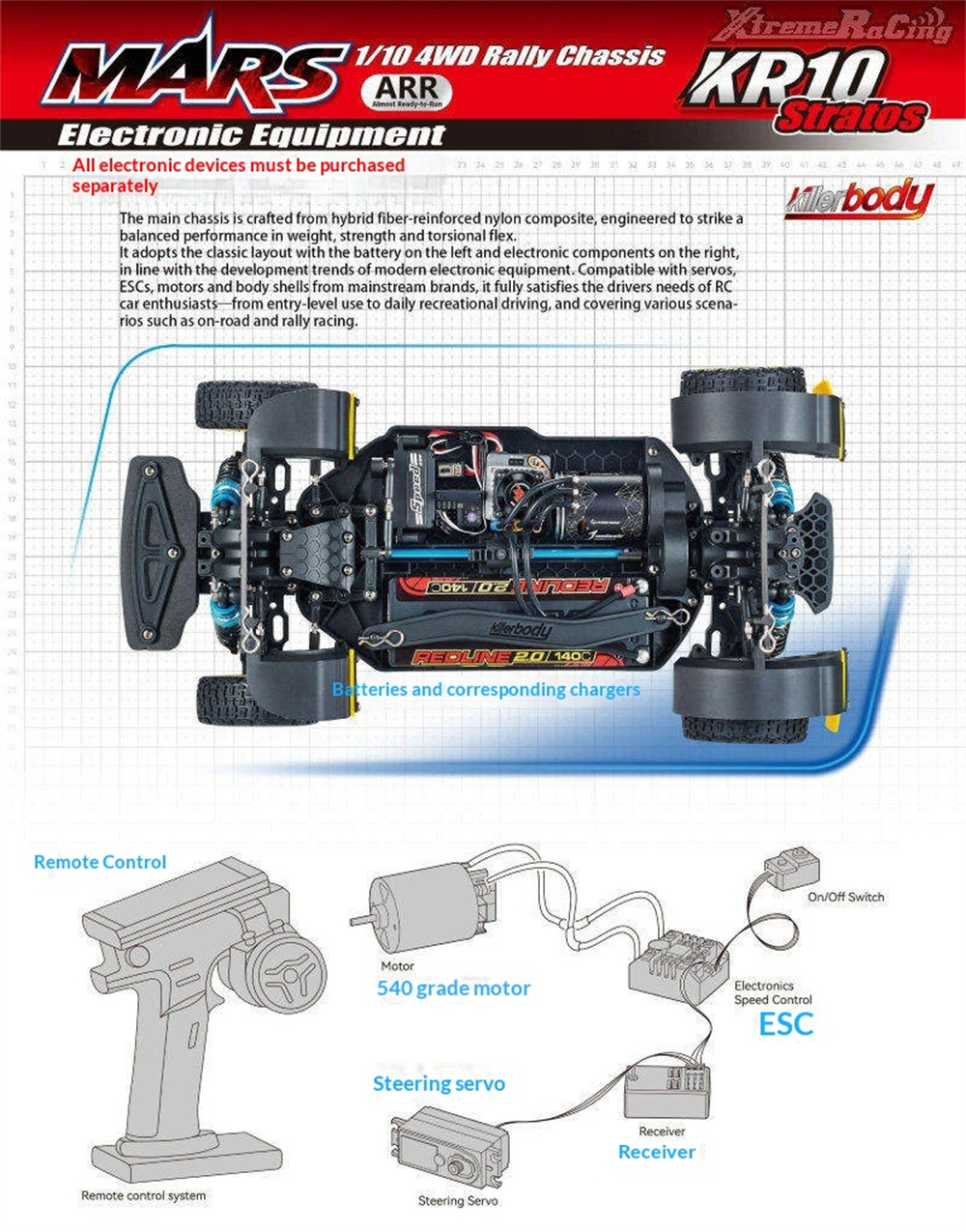

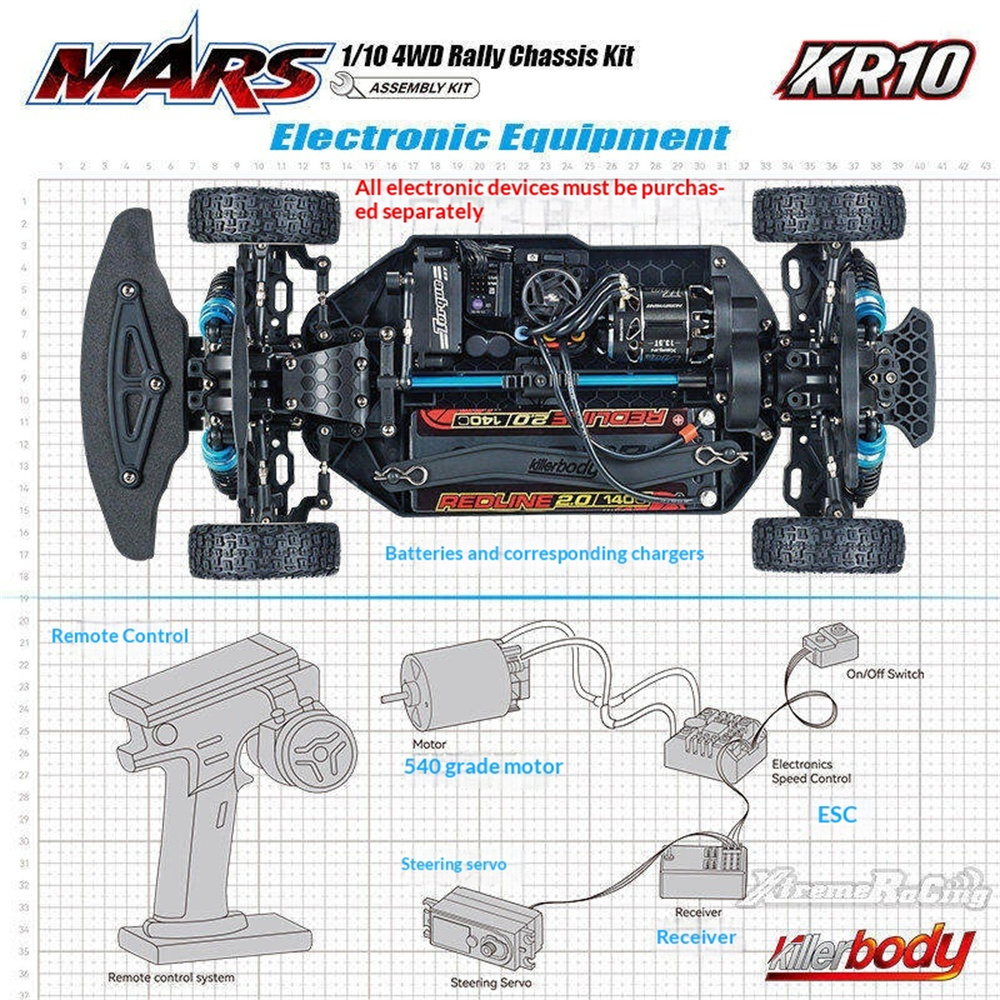

Recommended Motor,ESC,Servo,Transmitter,Battery,Charger,Body Shell(these parts are not included in the package,you should prepare them by yourself)

1.Motor:540 size brushed or 3650/3652 brushless motor

2.ESC:Brushed or brushless esc which support 2-3s lipo battery(Hobbywing XR10 or MAX10 series)

3.Servo:Short-bore 25T servo motor (Power HD 1206 G3 or R12S series)

4.Transmitter:Remote controls with 4 or more channels (such as Flysky NB4/G11P)

5.Battery:Standard hard-shell banana plug 2S power battery and corresponding charger

6.Body Shell:Kit version is fit for Killerbody 1/10 Lancia 037 body shell,ARR version is fit for Killerbody 1/10 Lancia Stratos Gr.4 body shell

Package Included:
1X RC Car(do not have body shell+all electronic parts)

1X Instruction Manual
