Oxbot Lumo25 Digital HD O4 / O4 Wide 123mm 3S 2.5 Inch Brushless FPV Racing Drone BNF ELRS with AT32 F435 AIO 1104 5000KV Motors

Oxbot Lumo25 Digital HD O4 / O4 Wide 123mm 3S 2.5 Inch Brushless FPV Racing Drone BNF ELRS with AT32 F435 AIO 1104 5000KV Motors

Price range: $539.38 through $557.98

SKU: POA12365300 Categories: , ,

Description

Note: Dimensions are for reference only. Actual product may vary slightly due to manufacturing tolerances.

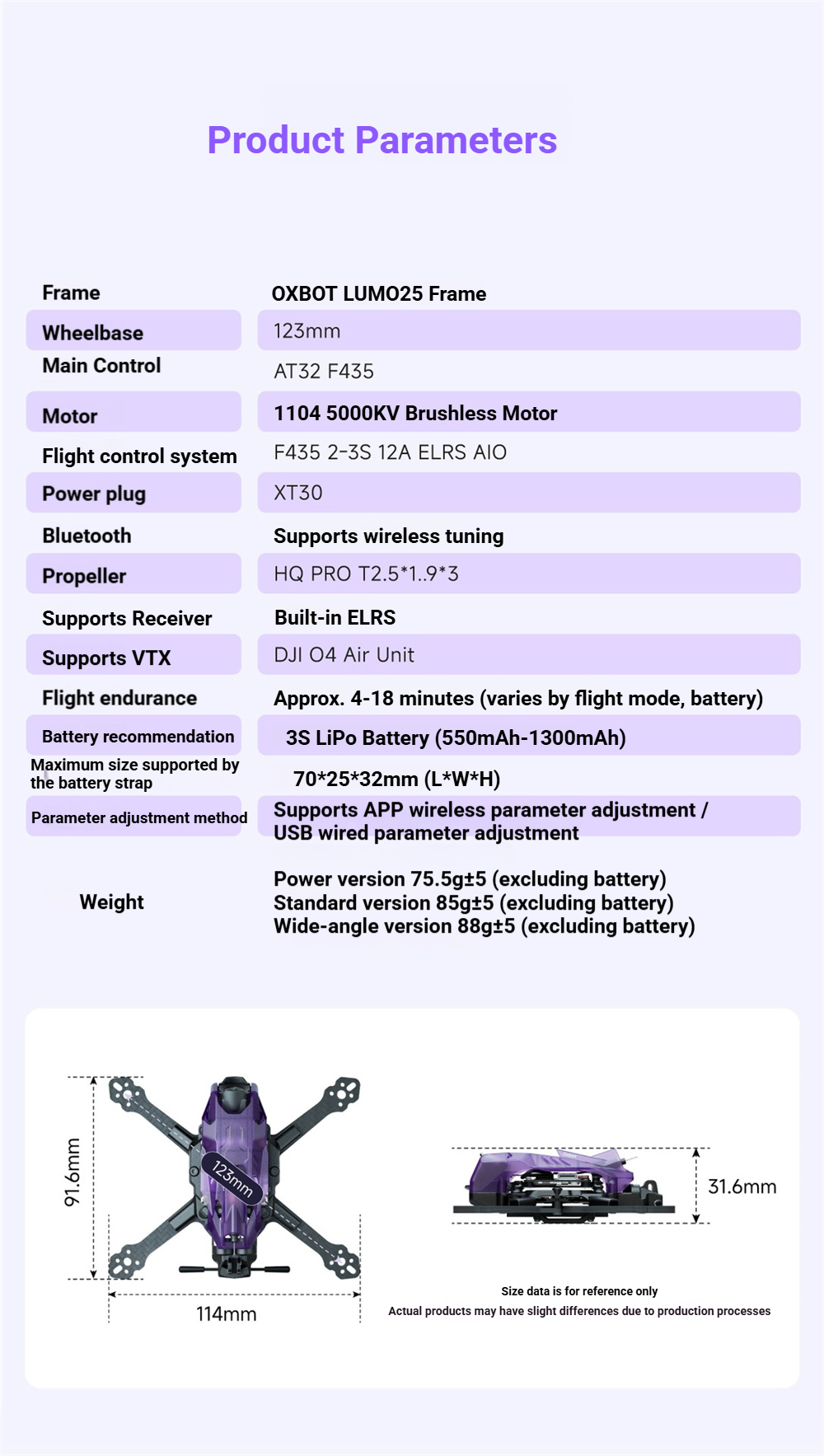

Specification:

Brand: Oxbot

Model: Lumo25

Iterm Name: 2.5-inch O4 HD FPV Racing Drone

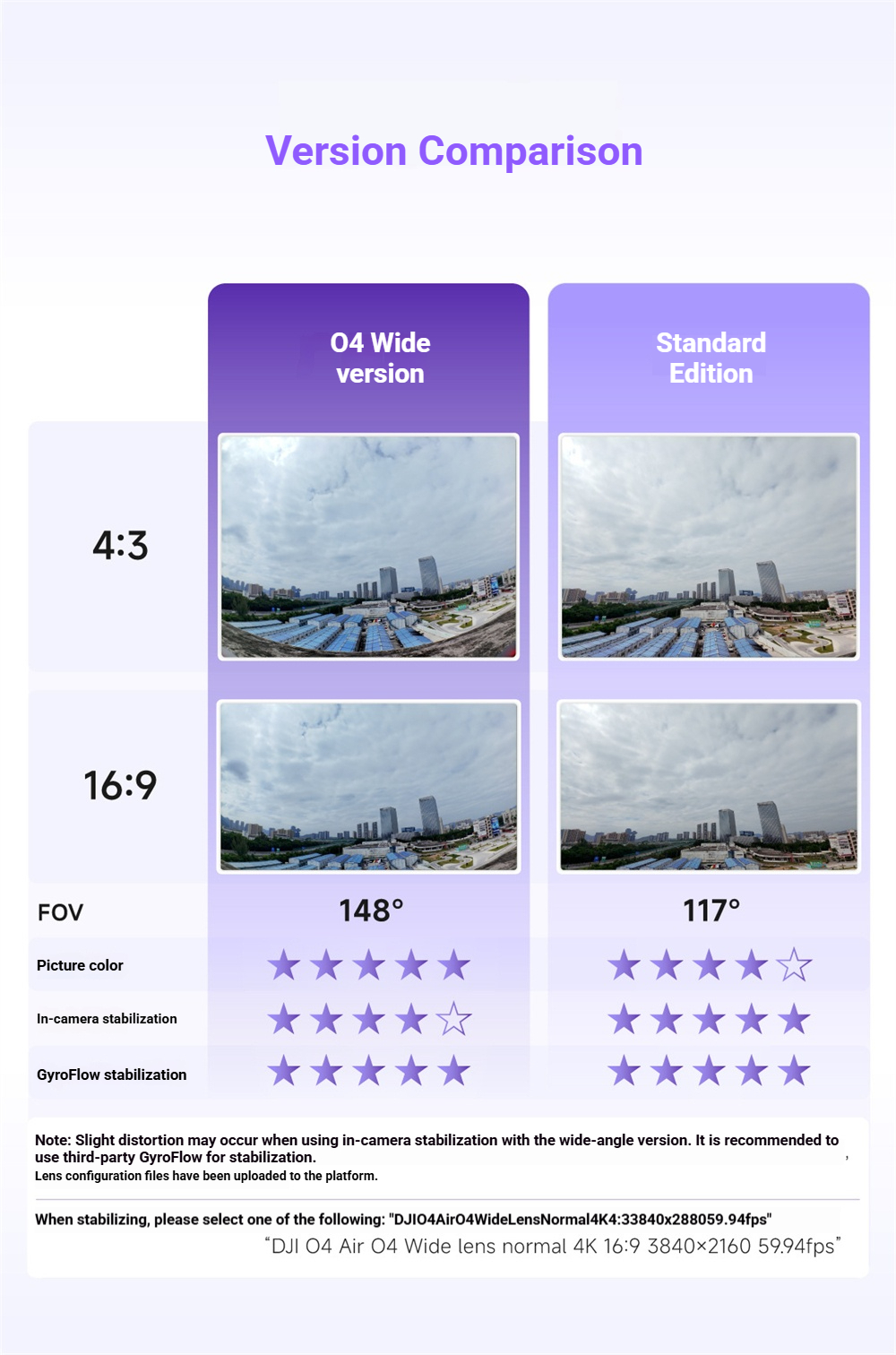

Version: ELRS Power Kit Version / ELRS O4 Version / ELRS O4 Wide Version

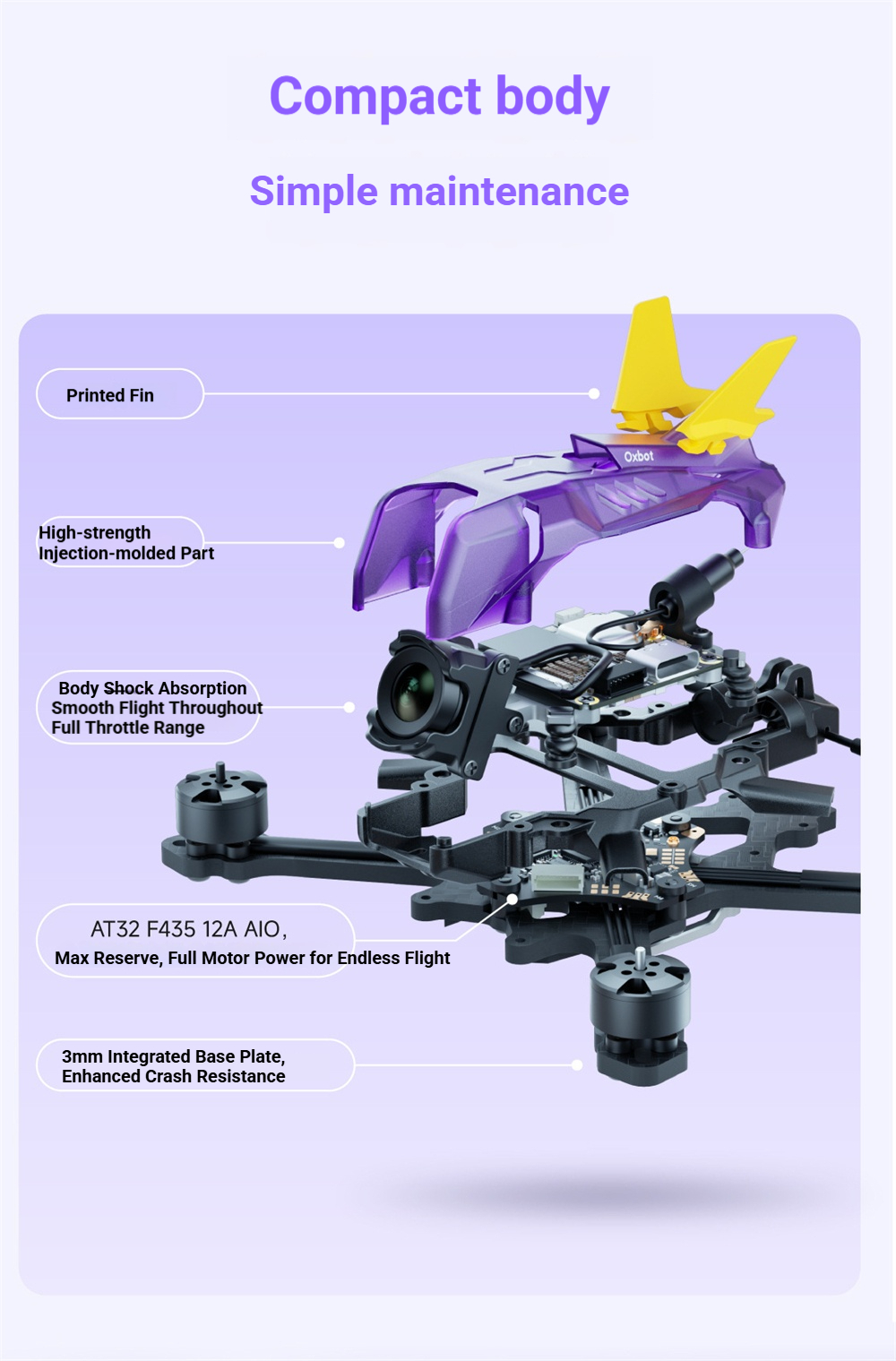

Frame: OXBOT LUMO25 frame

Wheelbase: 123 mm

Main Controller: AT32 F435

Motor: 1104 5000KV Brushless

Flight Control System: F435 2-3S 12A ELRS AIO

Power Connector: XT30

Bluetooth: Supported (for wireless parameter tuning)

Propellers: HQ PRO T2.5 x 1.9 x 3

Supported Receiver: Built-in ELRS

Supported Video Transmission: DJI O4 Air Unit

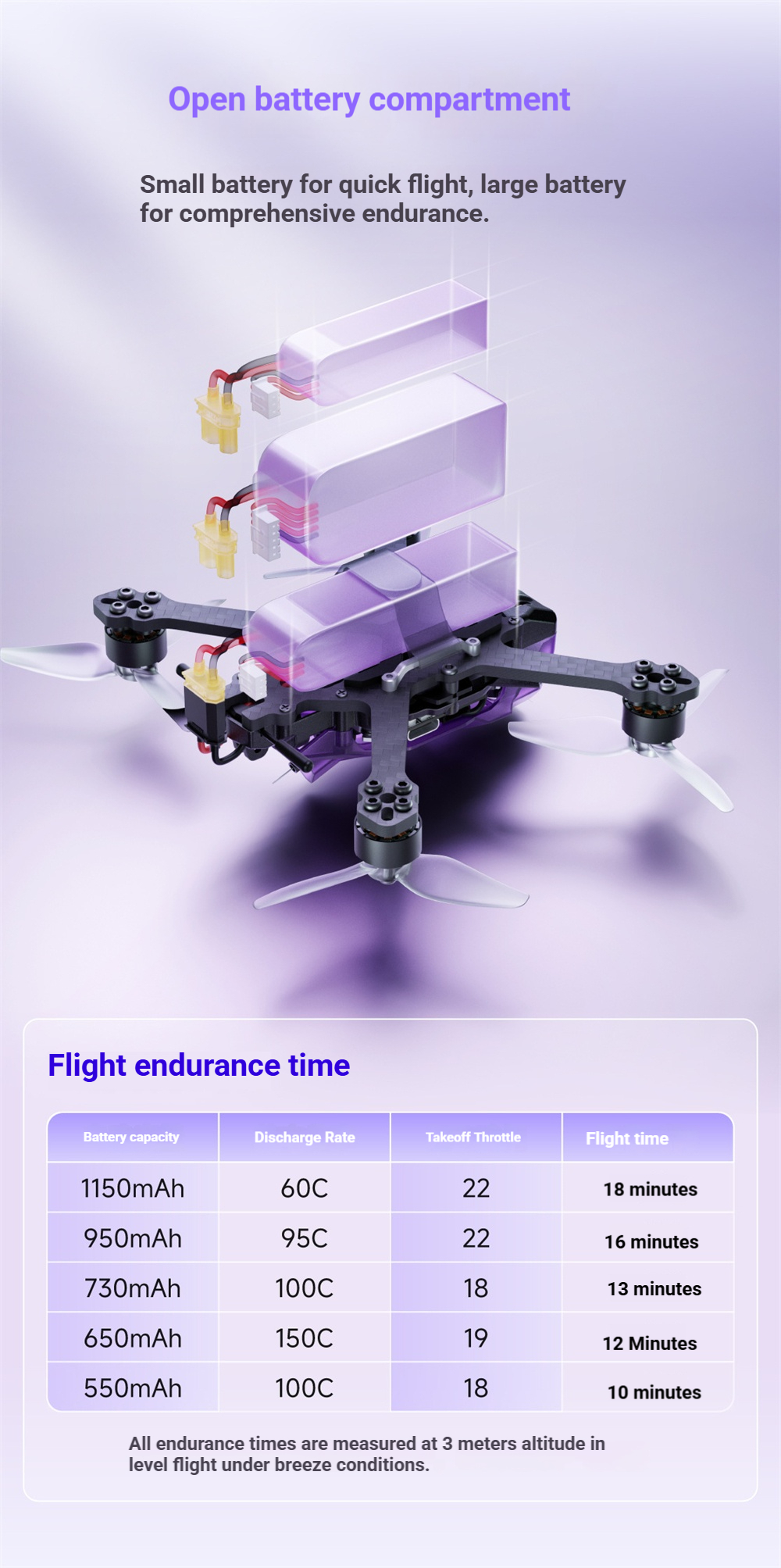

Flight Time: Approx. 4-18 minutes (depends on flight style and battery)

Recommended Battery: 3S Lithium Battery (550-1300 mAh)

Maximum Battery Strap Size Supported: 70 x 25 x 32 mm (L x W x H)

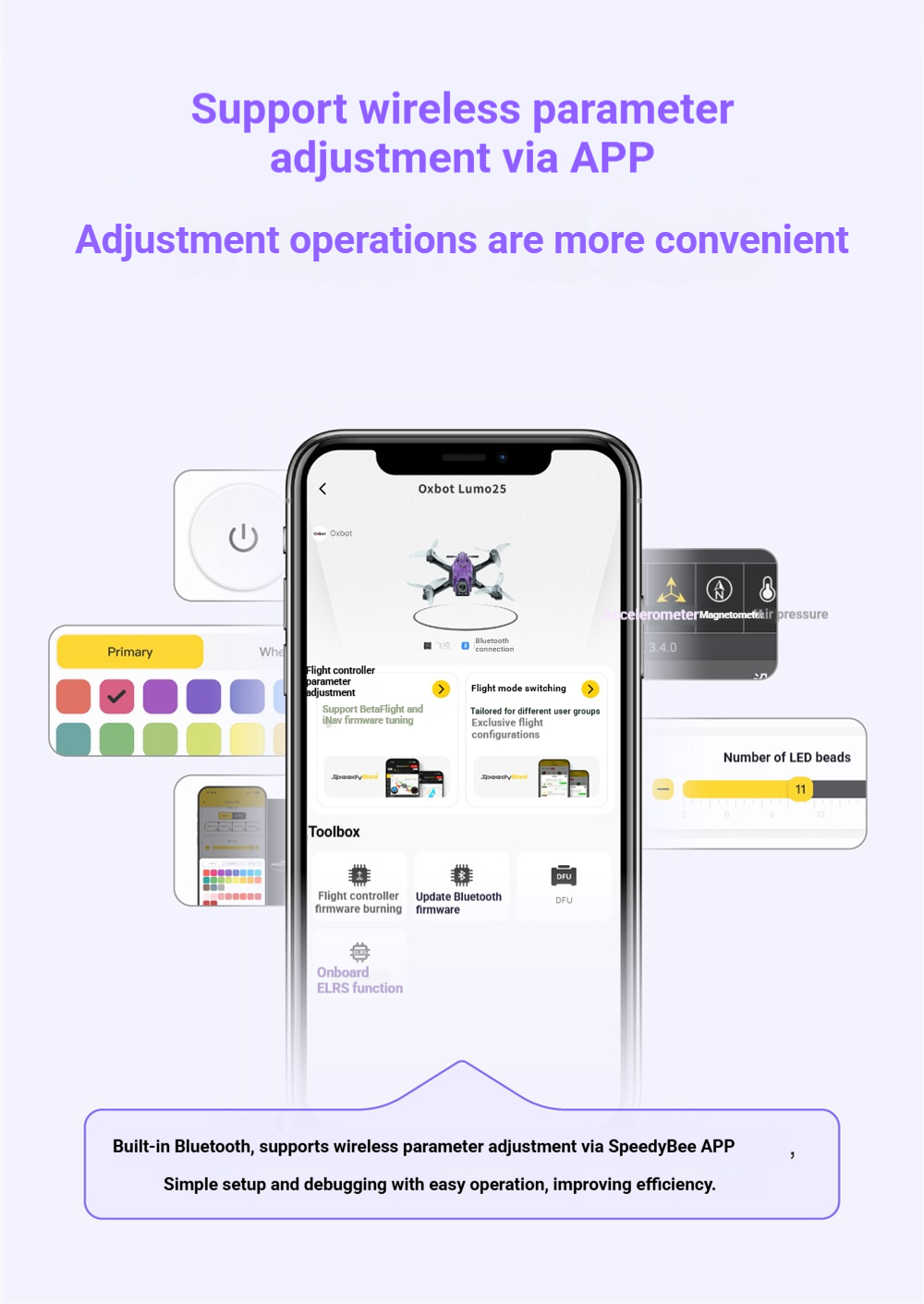

Tuning Methods: App-based wireless tuning / USB wired tuning

Weight (without battery):

Power Version: 75.5 g ±5 g

O4 Version: 85 g ±5 g

O4 Wide Version: 88 g ±5 g

Dimensions (reference only; minor variations possible):

Top View: 114 mm x 91.6 mm

Height: 31.6 mm

Diagonal Motor-to-motor (wheelbase): 123 mm



Package included:

Version

Included

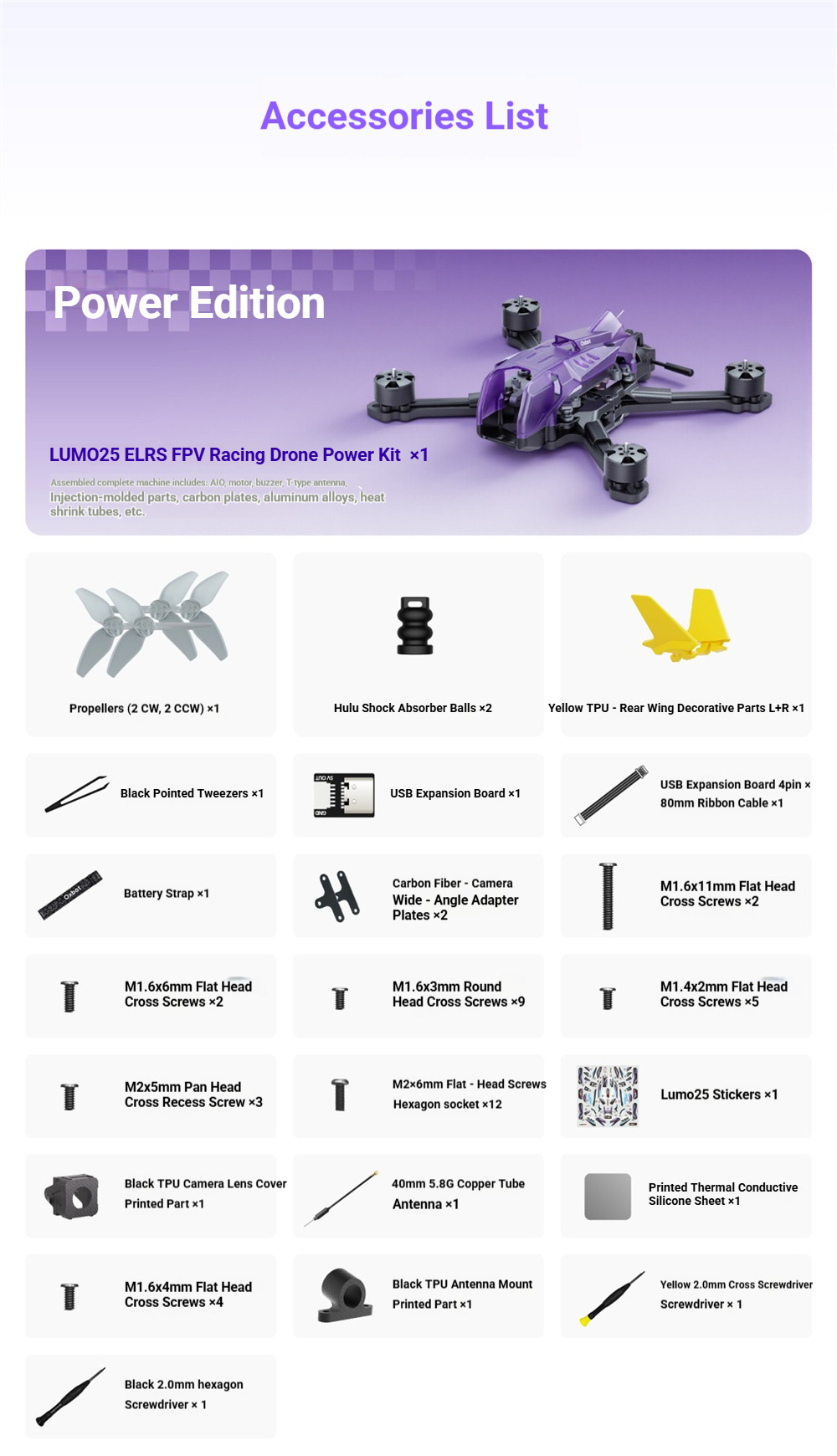

ELRS Power Kit

1x LUMO25 ELRS FPV Racing Drone Power Kit

1x Propeller set (2 CW + 2 CCW)

2x Grommet vibration dampers

1x Yellow TPU tail-wing decorations (L+R)

1x Black pointed tweezers

1x USB brekout board

1x 4-pin 80 mm ribbon cable (for USB brekout)

1x Battery strap

2x Carbon-fiber wide-angle camera adapter plates

2x M1.6×11 mm Phillips flat head screws

2x M1.6×6 mm Phillips flat head screws

9x M1.6×3 mm Phillips pan head screws

5x M1.4×2 mm Phillips flat head screws

3x M2x5 mm Phillips pan head screws

12x M2x6 mm hex‑socket button head screws

1x Lumo25 sticker sheet

1x Black TPU camera cover (printed)

1x 40 mm 5.8G copper-tube antenna

1x Thermal pad for VTX

4x M1.6×4 mm Phillips flat head screws

1x Black TPU antenna mount (printed)

1x Yellow 2.0 mm Phillips screwdriver

1x Black 2.0 mm hex driver

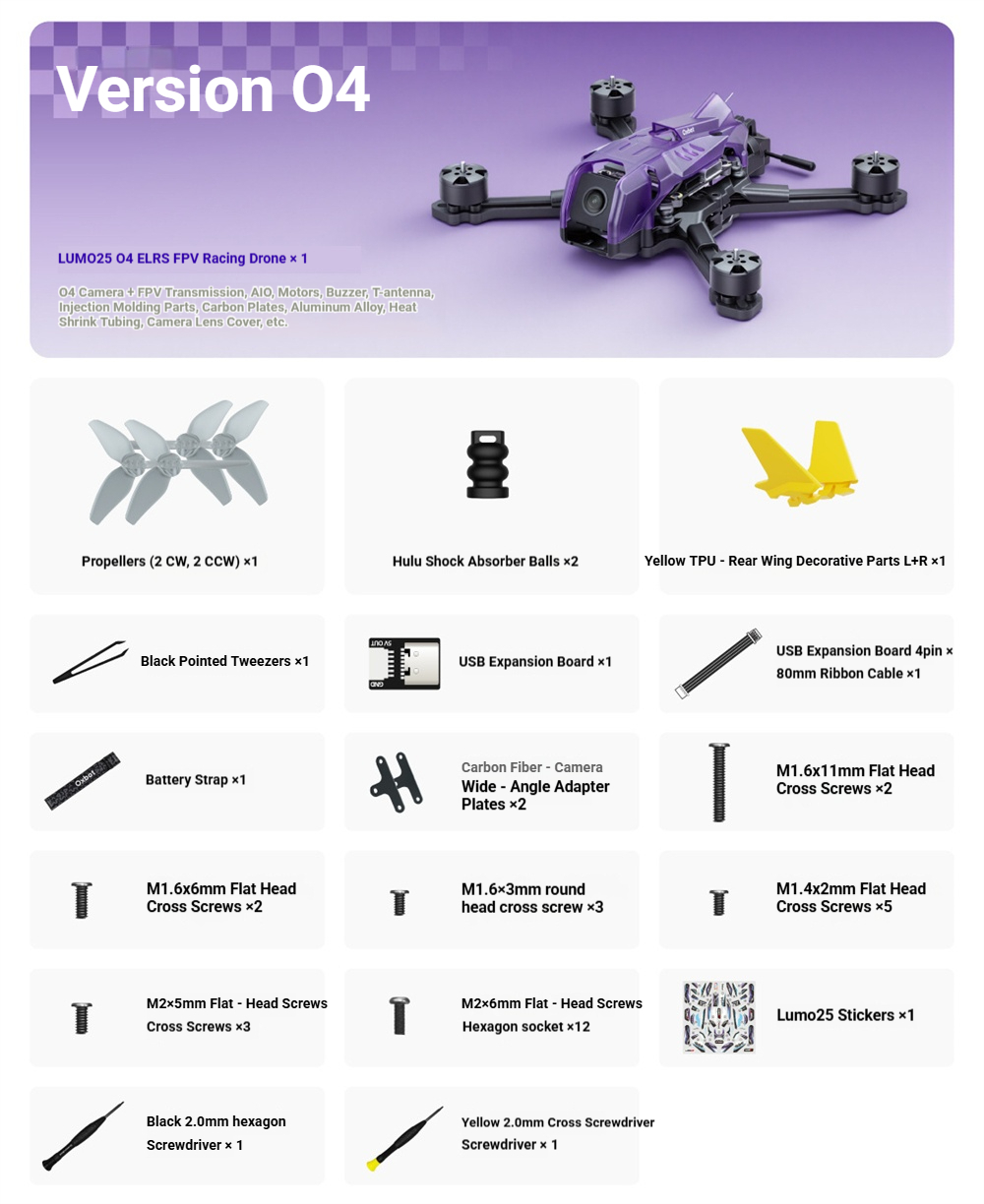

ELRS O4 Version

1x LUMO25 O4 ELRS FPV Racing Drone

1x Propeller set (2 CW + 2 CCW)

2x Grommet vibration dampers

1x Yellow TPU tail-wing decorations (L+R)

1x Black pointed tweezers

1x USB brekout board

1x 4-pin 80 mm ribbon cable (for USB brekout)

1x Battery strap

2x Carbon-fiber wide-angle camera adapter plates

2x M1.6×11 mm Phillips flat head screws

2x M1.6×6 mm Phillips flat head screws

3x M1.6×3 mm Phillips pan head screws

5x M1.4×2 mm Phillips flat head screws

3x M2x5 mm Phillips pan head screws

12x M2x6 mm hex-socket button head screws

1x Lumo25 sticker sheet

1x Black 2.0 mm hex driver

1x Yellow 2.0 mm Phillips screwdriver

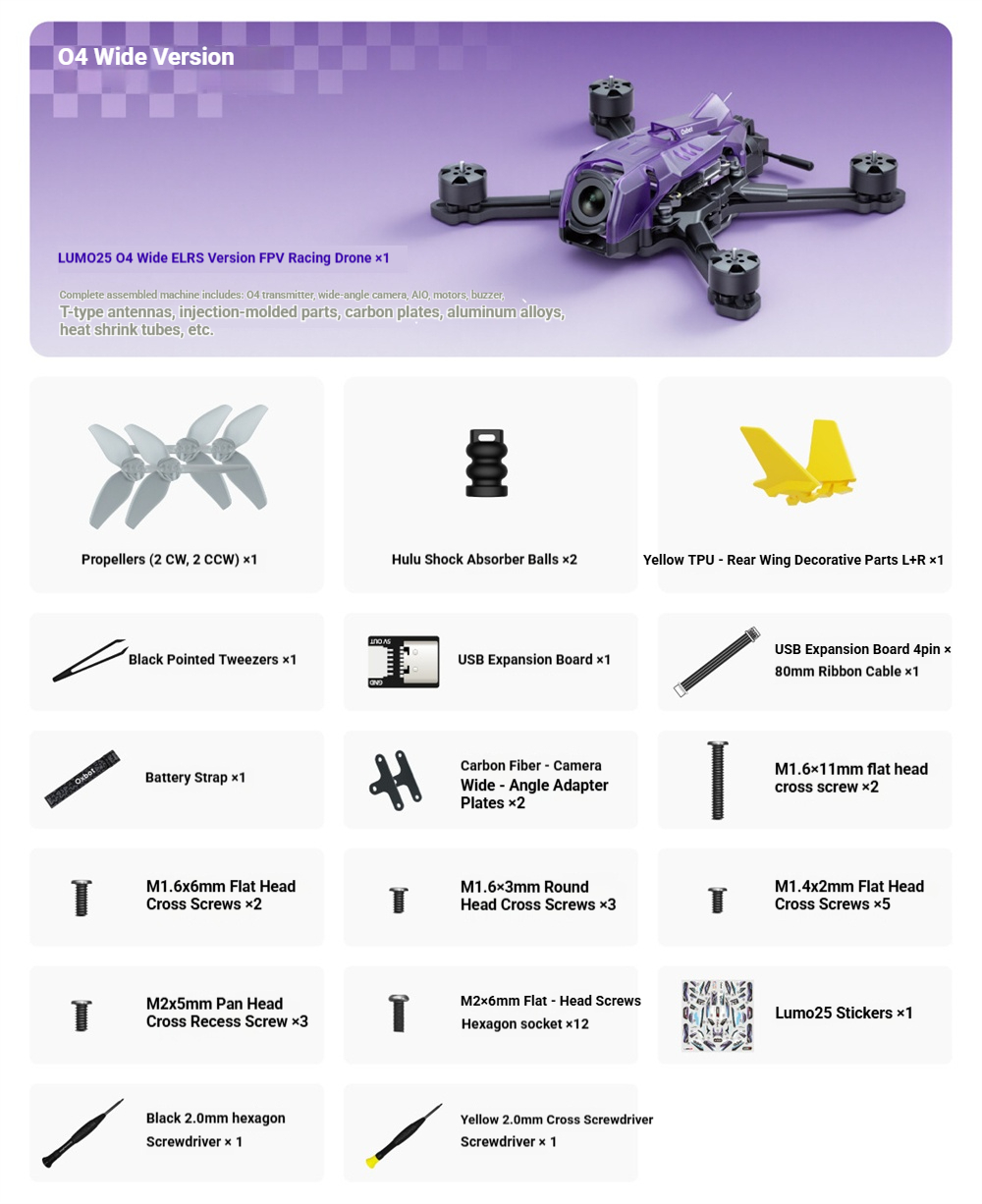

ELRS O4 Wide Version

1x LUMO25 O4 Wide FPV Racing Drone

1x Propeller set (2 CW + 2 CCW)

2x Grommet vibration dampers

1x Yellow TPU tail-wing decorations (L+R)

1x Black pointed tweezers

1x USB brekout board

1x 4-pin 80 mm ribbon cable (for USB brekout)

1x Battery strap

2x Carbon-fiber wide-angle camera adapter plates

2x M1.6×11 mm Phillips flat head screws

2x M1.6×6 mm Phillips flat head screws

3x M1.6×3 mm Phillips pan head screws

5x M1.4×2 mm Phillips flat head screws

3x M2x5 mm Phillips pan head screws

12x M2x6 mm hex-socket button head screws

1x Lumo25 sticker sheet

1x Black 2.0 mm hex driver

1x Yellow 2.0 mm Phillips screwdriver
